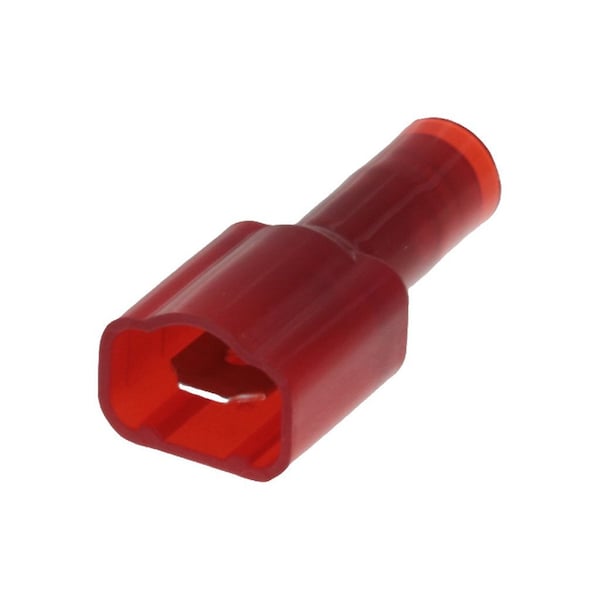

.187X.020 MALE FIQD AVIKRIMP (AA-5266)
| Gender | Male |
|---|---|
| Tab Thickness | 0.51 mm |
| Material - Plating Mating | Zinc Chromate |
| Insulation | Nylon |
| Color - Resin | Red |
| CSA | LR18689 |
| Material - Metal | Brass |
| Wire Insulation Diameter | 3.56 mm max. |
| Barrel Type | Closed |
| Flammability | 94V-2 |
| UL | E79133 |
| Material - Plating Termination | Zinc Chromate |
| Voltage - Maximum | 300 V |
| Wire Size AWG | 18, 20, 22 |
| Temperature Range - Operating | -65° to +105°C |
| Orientation | Straight |
| Tab Width | 4.75 mm |
| Package Quantity | 1 |
