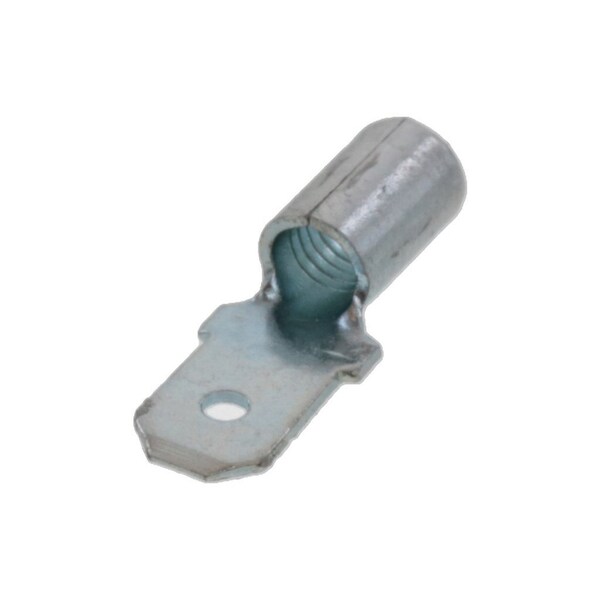

187X020 Male Qd Krimpt Zinc Mct-17 Spm
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Seam | Closed |
| Connection Type | Male |
| Connection Material | Brass |
| Wire Size (AWG) | 14, 16 |
| Tab Thickness | 0.51 mm |
| Tab Width | 4.75 mm |
| Lock to Mating Part | None |
| Temperature Range - Operating | Per Wire Specification |
| Material - Plating Mating | Zinc Chromate |
| Material - Plating Termination | Zinc Chromate |
| Plating min - Mating | 5.08 um |
| Orientation | Straight |
| Series | 19022 |
| Insulated | No |
| Glow-Wire Capable | No |
| Insulation | None |
| Voltage - Maximum | Per Wire Specification |
| Product Name | Krimptite |
| Type | Quick Disconnect |
| Polarized to Mating Part | No |
| Package Quantity | 1 |
