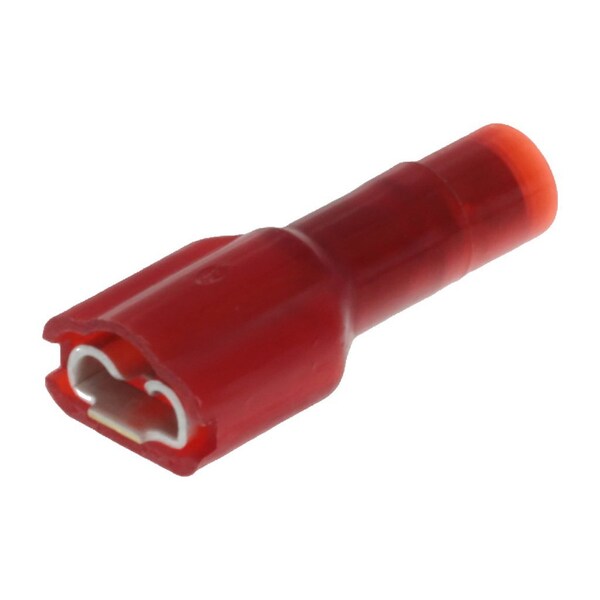

.187X.032 FEM. FIQD AVIKRIMP (AA-5271) es un conector hembra de alta calidad para aplicaciones de crimpado.
| Tab Width | 4.75 mm |
|---|---|
| Voltage - Maximum | 300 V |
| Material - Metal | Brass |
| Wire Size AWG | 18, 20, 22 |
| Color - Resin | Red |
| Gender | Female |
| Material - Plating Mating | Tin |
| Material - Plating Termination | Tin |
| Orientation | Straight |
| Barrel Type | Closed |
| Flammability | 94V-2 |
| Wire Insulation Diameter | 3.17 mm max. |
| Insulation | Nylon |
| Tab Thickness | 0.81 mm |
| UL | E79133 |
| CSA | LR18689 |
| Temperature Range - Operating | -65° to +105°C |
| Package Quantity | 1 |
