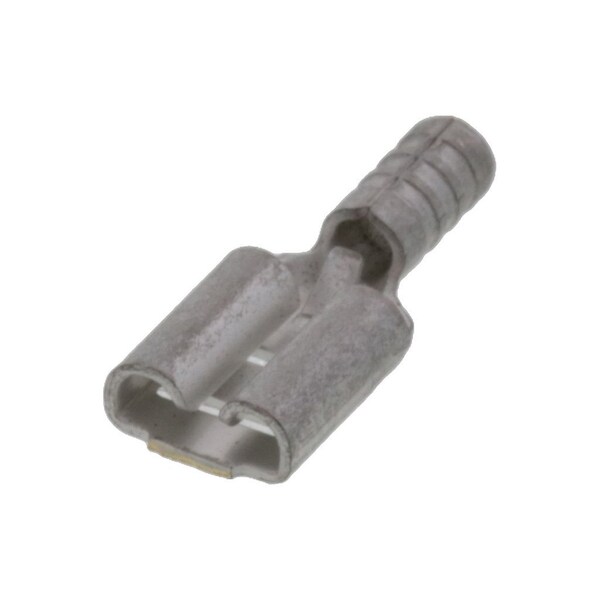

.187X.032 Fem.Qd Krimptite (M-1136-032)
| Wire Range | 26 to 24 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Connection Type | Crimp, Compression, Female |
| Seam | Closed |
| Connection Material | Brass |
| Tab Thickness | 0.81 mm |
| Material - Plating Termination | Tin |
| Voltage - Maximum | Per Wire Specification |
| Wire Size (AWG) | 24, 26 |
| Temperature Range - Operating | Per Wire Specification |
| Lock to Mating Part | None |
| Insulation | None |
| Gender | Female |
| Polarized to Mating Part | No |
| Termination Interface Style | Compression, Crimp |
| Plating min - Mating | 2.54 um |
| Orientation | Straight |
| Type | Quick Disconnect |
| Product Name | Krimptite |
| Insulated | No |
| Series | 19016 |
| Glow-Wire Capable | No |
| Tab Width | 4.75 mm |
| Material - Plating Mating | Tin |
| Package Quantity | 1 |
