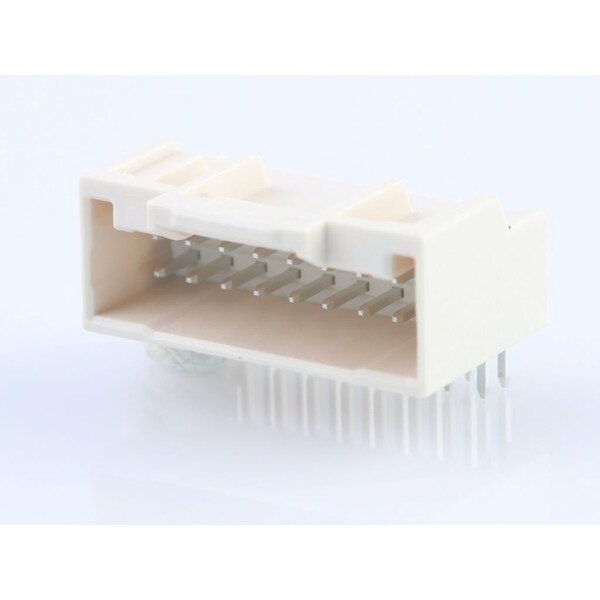

Encabezado de cable a placa de 2.00 mm de paso, de doble fila, ángulo recto, 18 circuitos.
| Color | Natural |
|---|---|
| Number of Rows | 2 |
| Series | 501876 |
| Max. Voltage | 250V AC/DC |
| Application | Signal, Wire-to-Board |
| Hole Center to Center | 2 mm |
| Material | Nylon |
| Terminal Type | Through Hole |
| Max. Temp. | 105 deg C |
| Standards | CSA Certified, UL E29179 |
| Number of Contacts | 18 |
| Terminal Finish | Tin Plated |
| Flammability Rating | UL 94V-0 |
| Current Rating | 2 A |
| Contact Finish | Tin Plated |
| Durability (mating cycles max) | 30 |
| Glow-Wire Capable | No |
| PC Tail Length | 3.2 mm |
| Flammability | 94V-0 |
| Orientation | Right Angle |
| Material - Metal | Brass |
| Stackable | No |
| Voltage - Maximum | 250V AC (RMS)/DC |
| Circuits (Loaded) | 18 |
| Pitch - Mating Interface | 2 mm |
| Product Name | iGrid |
| Current - Maximum per Contact | 2 A |
| Polarized to PCB | No |
| CSA | LR19980 |
| PCB Retention | None |
| Polarized to Mating Part | Yes |
| PCB Thickness - Recommended | 1.2 mm, 1.6 mm |
| PCB Locator | No |
| Temperature Range - Operating | -40° to +105°C |
| Material - Plating Termination | Tin |
| UL | E29179 |
| Component Type | PCB Header |
| Lock to Mating Part | Yes |
| Material - Resin | Nylon |
| Breakaway | No |
| Material - Plating Mating | Tin |
| Keying to Mating Part | Yes |
| Package Quantity | 1 |
