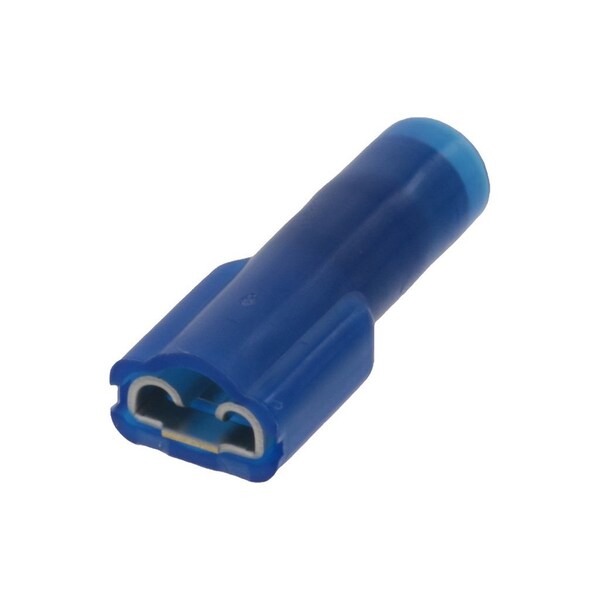

.205X.032 Hembra Fiqd Avikrimp (Bb-5289)
| Wire Range | 16 to 14 AWG |
|---|---|
| Insulation Type | Nylon |
| Insulation Color | Blue |
| Connection Material | Brass |
| Connection Type | Female |
| Max. Voltage | 300 V |
| Seam | Closed |
| Standards | UL E79133 |
| Max. Temp. | 105 deg C |
| Insulation Dia | 3.94mm max. |
| Insulated | Fully |
| Lock to Mating Part | None |
| Tab Width | 5.21 mm |
| Wire Size (AWG) | 14, 16 |
| Temperature Range - Operating | -65° to +105°C |
| Type | Quick Disconnect |
| Glow-Wire Capable | No |
| UL | E79133 |
| Orientation | Straight |
| Product Name | Avikrimp |
| Material - Plating Termination | Tin |
| Series | 19002 |
| Polarized to Mating Part | No |
| Material - Plating Mating | Tin |
| Flammability | 94V-2 |
| Tab Thickness | 0.81 mm |
| Package Quantity | 1 |
