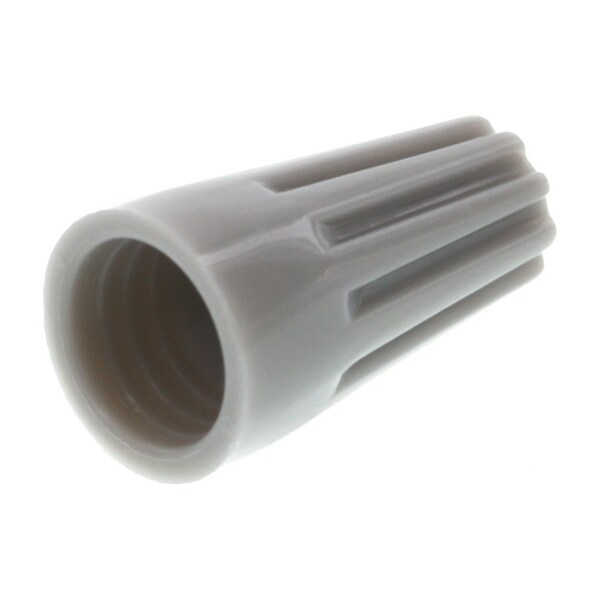

22-14 Awg Gray Twist Lock (Tl-G)Spm
| Wire Range | 22 to 14 AWG |
|---|---|
| Insulation Type | Nylon |
| Insulation Color | Gray |
| Series | 19160 |
| Standards | CSA LR700095; UL E32244 |
| Seam | Closed |
| Max. Temp. | 105 deg C |
| Connection Material | Copper |
| Max. Voltage | 300 V |
| Insulation Dia | 6.60mm max. |
| UL | E32244 |
| Material - Plating Mating | Tin |
| Wire Size (AWG) | 14, 16, 18, 20, 22 |
| Temperature Range - Operating | 105°C |
| Flammability | 94V-2 |
| Color - Resin | Gray |
| CSA | LR700095 |
| Material - Plating Termination | Tin |
| Product Name | Lock |
| Package Quantity | 1 |
