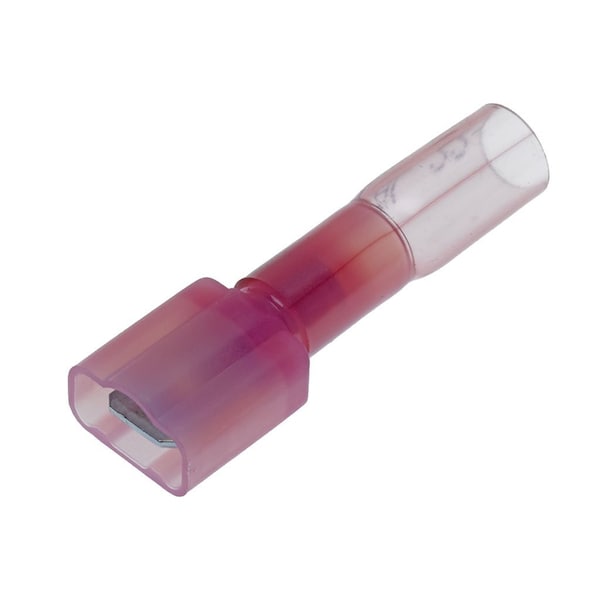

22-18 MALE COUPLER PERMA-SEAL (SAA-9260)
| Barrel Type | Closed |
|---|---|
| Material - Plating Mating | Zinc Chromate |
| Voltage - Maximum | 600 V |
| CSA | LR18689 |
| Plating min - Termination | 5.080µm |
| UL | E79133 |
| Tab Width | 6.35 mm |
| Material - Metal | Brass |
| Wire Insulation Diameter | 3.81 mm max. |
| Material - Plating Termination | Zinc Chromate |
| Temperature Range - Operating | -55° to +125°C |
| Plating min - Mating | 5.080µm |
| Orientation | Straight |
| Wire Size AWG | 18, 20, 22 |
| Gender | Male |
| Insulation | NiAc |
| Color - Resin | Red |
| Material - Resin | Nylon |
| Tab Thickness | 0.81 mm |
| Package Quantity | 1 |
