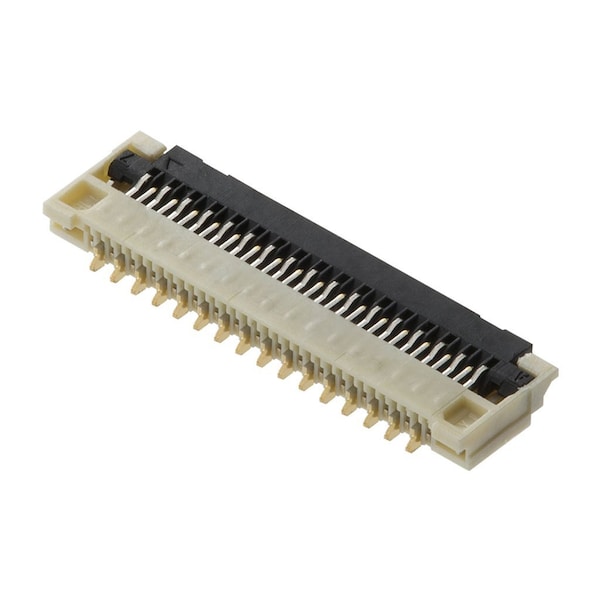

250Um Fpc E/O Hsg Assy 53Ckt Embstppkg se traduce a: Conjunto de ensamblaje de carcasa E/O FPC de 250Um 53 circuitos Embstppkg.
| Series | 502078 |
|---|---|
| Color - Resin | Beige |
| Voltage - Maximum | 50 V |
| Temperature Range - Operating | -40° to +85°C |
| Material - Metal | Phosphor Bronze |
| Material - Resin | Liquid Crystal Polymer |
| Pitch - Mating Interface | 0.25 mm |
| Material - Plating Termination | Gold |
| PCB Mounting | Surface Mount |
| Product Name | Easy-On |
| Polarized to PCB | Yes |
| Wire/Cable Type | FPC only |
| Orientation | Right Angle |
| Stackable | No |
| Mated Height | 1 mm |
| Circuits (Loaded) | 53 |
| PCB Retention | Yes |
| Material - Plating Mating | Gold |
| Current - Maximum per Contact | 0.3 A |
| PCB Locator | No |
| Actuator Type | Front Flip |
| Durability (mating cycles max) | 10 |
| Contact Position | Bottom |
| Package Quantity | 1 |
