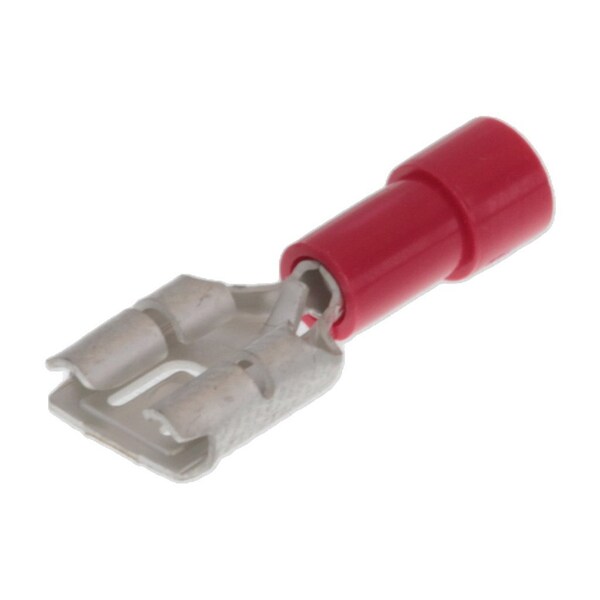

Ficha hembra aislada de .250X.032 para cable de 22-18 Quixon.
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | PVC |
| Insulation Color | Red |
| Max. Temp. | 105 deg C |
| Connection Type | Female |
| Max. Voltage | 600 V |
| Standards | CSA Listed; UL E79133 |
| Seam | Closed |
| Connection Material | Brass |
| Insulation Dia | 3.30mm |
| Tab Thickness | 0.41 mm |
| Material - Plating Termination | Tin |
| CSA | LR18689 |
| Orientation | Straight |
| Product Name | InsulKrimp, Quixon |
| Wire Size (AWG) | 18, 20, 22 |
| Flammability | 94V-0 |
| Type | Quick Disconnect |
| Glow-Wire Capable | No |
| Tab Width | 7.87 mm |
| Material - Plating Mating | Tin |
| Temperature Range - Operating | -55° to +105°C |
| Lock to Mating Part | None |
| Series | 19274 |
| UL | E79133 |
| Insulated | Partial |
| Package Quantity | 1 |
