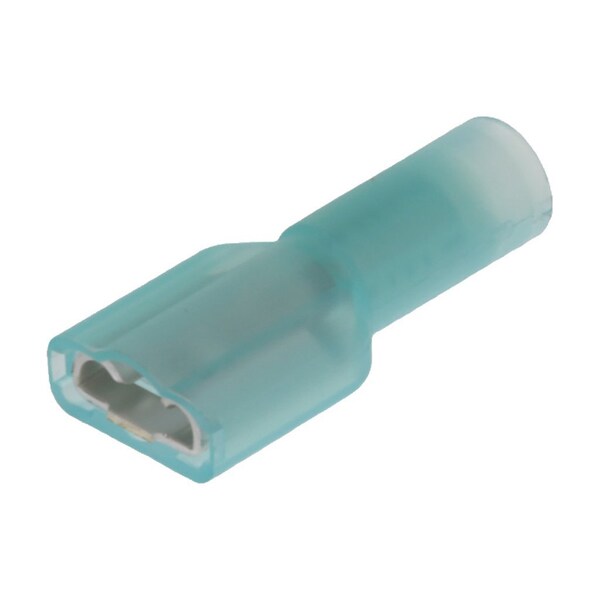

Este acoplador hembra Molex .250X.032 (BB-2263) - 19005-0005 es perfecto para conectar de manera segura y confiable cables con terminales .250X.032. Fabricado con materiales de alta calidad para garantizar su durabilidad y rendimiento.
| Color - Resin | Blue |
|---|---|
| Tab Width | 6.35 mm |
| Material - Resin | Nylon |
| Wire Size AWG | 14, 16 |
| Wire Insulation Diameter | 4.19 mm max. |
| CSA | LR18689 |
| Barrel Type | Closed |
| UL | E79133 |
| Material - Metal | Brass |
| Flammability | 94V-2 |
| Wire Size mm² | 1.30-2.00 |
| Material - Plating Termination | Tin |
| Material - Plating Mating | Tin |
| Voltage - Maximum | 600 V |
| Insulation | Nylon |
| Gender | Female |
| Orientation | Straight |
| Temperature Range - Operating | -65° to +105°C |
| Tab Thickness | 0.81 mm |
| Package Quantity | 1 |
