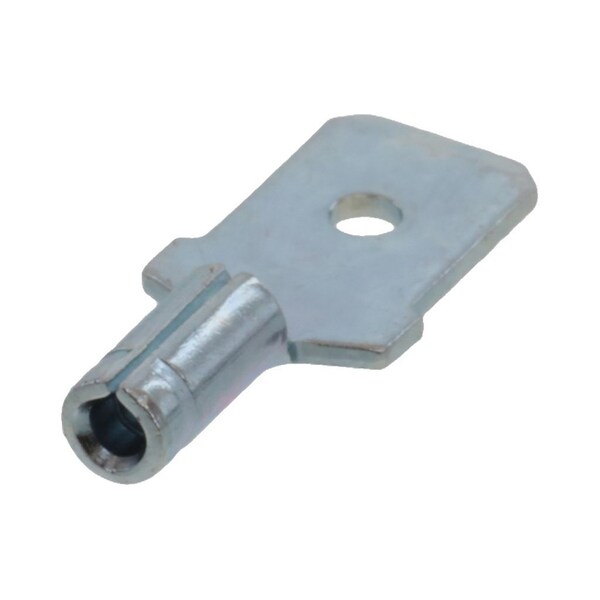

.250X.032 Male Qd Krimptite Amct-1 Spm
| Wire Range | 22 to 18 AWG |
|---|---|
| Insulation Type | Non-Insulated |
| Connection Type | Male |
| Connection Material | Brass |
| Seam | Closed |
| Standards | CSA Listed; UL E79133 |
| Wire Size (AWG) | 18, 20, 22 |
| CSA | LR18689 |
| Product Name | Krimptite |
| Lock to Mating Part | None |
| Polarized to Mating Part | No |
| UL | E79133 |
| Series | 19022 |
| Insulated | No |
| Tab Thickness | 0.81 mm |
| Glow-Wire Capable | No |
| Type | Quick Disconnect |
| Material - Plating Termination | Zinc Chromate |
| Plating min - Mating | 0.762 um |
| Temperature Range - Operating | Per Wire Specification |
| Voltage - Maximum | Per Wire Specification |
| Orientation | Straight |
| Insulation | None |
| Tab Width | 6.35 mm |
| Material - Plating Mating | Zinc Chromate |
| Package Quantity | 1 |
