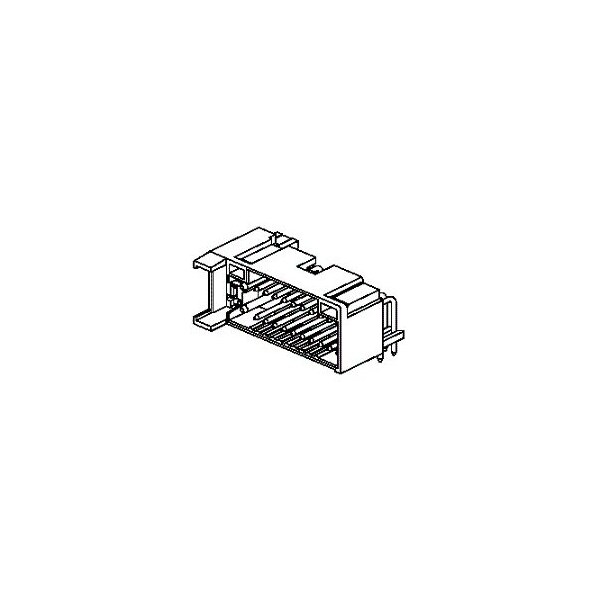

2.5/3.5Mm Wtb Hdr /Sglfusskt 4Snlf 22Ckt
| Number of Rows | 2 |
|---|---|
| Series | 87942 |
| Application | Power, Wire to-Board |
| PCB Locator | No |
| Shrouded | Fully |
| Breakaway | No |
| Orientation | Right Angle |
| Stackable | No |
| Component Type | PCB Header |
| Plating min - Mating | 2.032 um |
| Circuits (Loaded) | 22 |
| First Mate / Last Break | No |
| Polarized to PCB | Yes |
| Guide to Mating Part | No |
| Voltage - Maximum | 250 V |
| PC Tail Length | 3.5 mm |
| Durability (mating cycles max) | 30 |
| Pitch - Mating Interface | 2.5 mm, 3 mm |
| Lock to Mating Part | Yes |
| PCB Thickness - Recommended | 1.6 mm |
| PCB Retention | Yes |
| (p)ower-(s)ignal Configuration | 2p - 20s |
| Material - Plating Mating | Tin |
| Material - Plating Termination | Tin |
| Temperature Range - Operating | -40° to +105°C |
| Glow-Wire Capable | No |
| Current - Maximum per Contact | 20 A, 4 A |
| Polarized to Mating Part | Yes |
| Keying to Mating Part | None |
| Termination Interface Style | Through Hole |
| Mated Height | 15.1 mm |
| Package Quantity | 1 |
