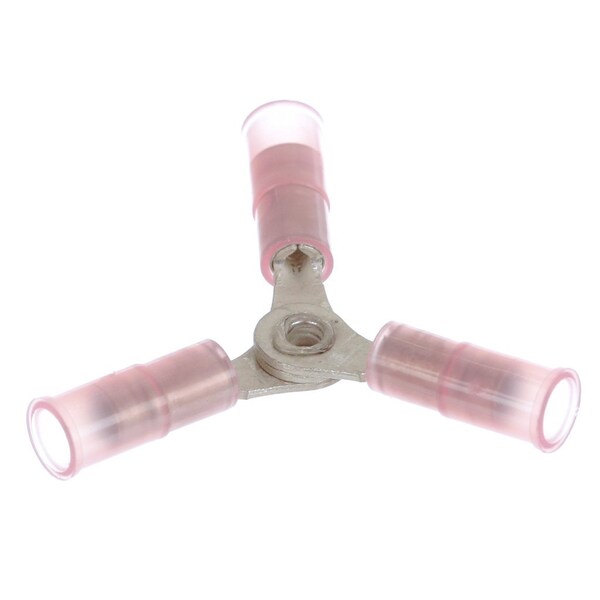

Conector Avikrimp de 3 vías (A-5Yc)
| Material - Resin | Nylon |
|---|---|
| Wire Size (AWG) | 18, 20, 22 |
| Wire Insulation Diameter | 3.56 mm max. |
| Voltage - Maximum | 600 V |
| Series | 19204 |
| Color - Resin | Red |
| Material - Plating Termination | Tin |
| Material - Metal | Copper |
| Termination Interface Style | Compression, Crimp |
| Barrel Type | Closed |
| Insulation | Nylon |
| Temperature Range - Operating | -55° to +105°C |
| Product Name | Avikrimp, 3 Way |
| Material - Plating Mating | Tin |
| Package Quantity | 1 |
