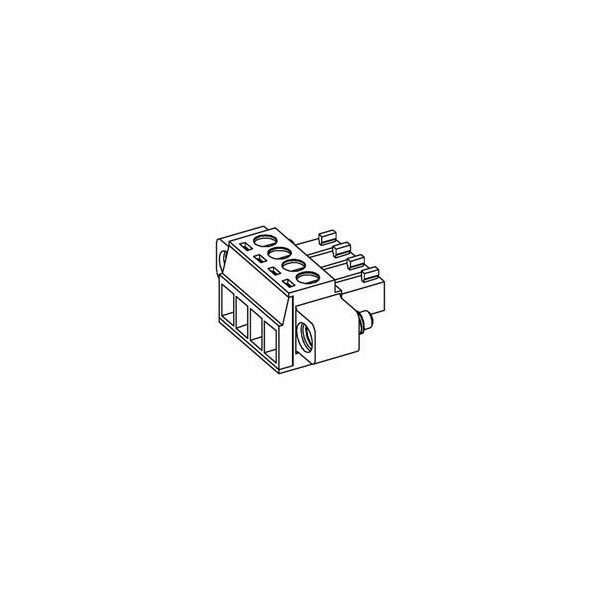

3.5Mm Euro Plug Ra Blk Me 12Ckt
| Series | 39504 |
|---|---|
| Type | Euro Block |
| Polarized to Mating Part | Yes |
| Panel Mount | No |
| Current - Maximum per Contact | 8 A |
| Wire Size AWG | 16, 18, 20, 22, 24, 26, 28, 30 |
| Pitch - Mating Interface | 3.5 mm |
| Wire Size mm² | 0.05-1.31 |
| Entry Angle | Vertical |
| Orientation | Horizontal |
| UL | E48521 |
| Pitch - Termination Interface | 3.5 mm |
| Number of Rows | 1 |
| Temperature Range - Operating | -40° to +105°C |
| Stackable | No |
| Circuits (Loaded) | 12 |
| Lock to Mating Part | Yes |
| Voltage - Maximum | 300 V |
| Product Name | ESE,Eurostyle Pluggable |
| Component Type | Plug |
| Package Quantity | 1 |
