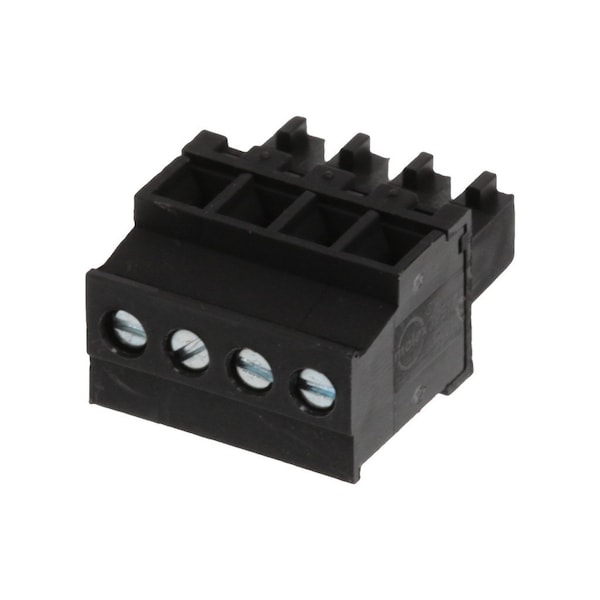

3.81Mm Euro Plug Vert Fwe Blk 4Ckt
| Wire Size mm² | 0.05-1.31 |
|---|---|
| Current - Maximum per Contact | 8 A |
| Wire Size AWG | 16, 18, 20, 22, 24, 26, 28, 30 |
| Stackable | No |
| Temperature Range - Operating | -40° to +105°C |
| Pitch - Mating Interface | 3.81 mm |
| Orientation | Vertical |
| Entry Angle | Horizontal |
| Number of Rows | 1 |
| Polarized to Mating Part | Yes |
| UL | E48521 |
| Lock to Mating Part | None |
| Circuits (Loaded) | 4 |
| Pitch - Termination Interface | 3.81 mm |
| Voltage - Maximum | 300 V |
| Panel Mount | No |
| Package Quantity | 1 |
