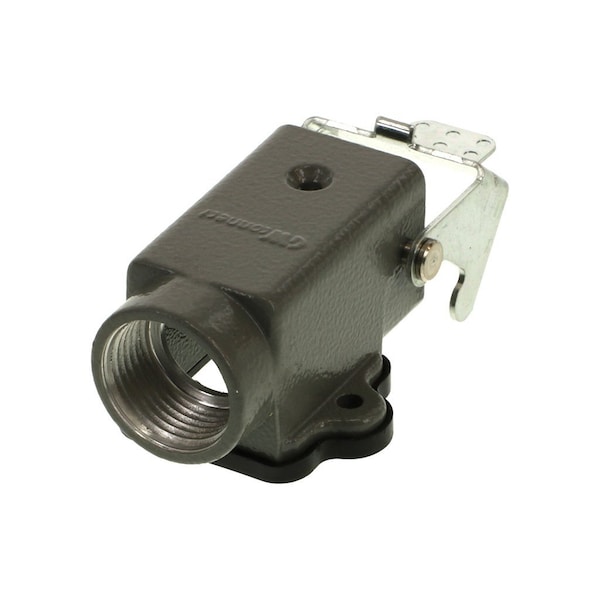

Carcasa a granel estándar met. R.A. de 3A 1 nivel S/E M20, fabricada por Molex.
| UL | E249674 |
|---|---|
| Number of Levers | 1 |
| Thread Type | Metric |
| Voltage - Maximum | 500 V |
| Housing Coating | Polyester Powder |
| Material - Housing | Die-cast Aluminum |
| Thread Size | M20 |
| Housing Color | Grey RAL 7037 |
| Mounting Style | Bulkhead |
| CSA | 256883 |
| Material - Lever | Zinc Plated Steel |
| Lock to Mating Part | Yes |
| Material - Gasket | NBR |
| Product Name | GWconnect |
| Component Size | 3A «21x21» |
| Series | 93601 |
| Standard | ANSI/UL 50, ANSI/UL 50 E, CSA C22.2 No.94-1-2, EN 61984 |
| IP Rating | IP67, IP66 |
| Type | STD |
| Component Type | Single Lever Bulkhead Housing |
| Package Quantity | 1 |
