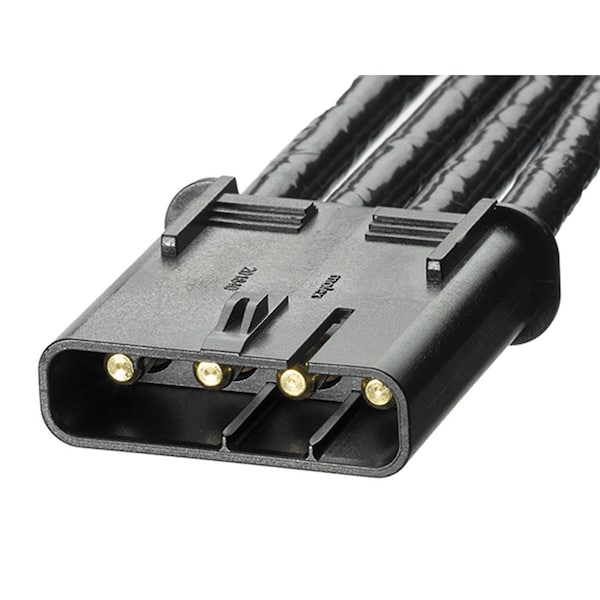

4 Ckt Cpa Multicat 300Mm Awg8 Mal
| Cord Length | 300 mm |
|---|---|
| Voltage | 1000V AC |
| Connection Type | Male to Male |
| Jacket Material | PEI |
| Wire Size | 8 AWG |
| Number of Conductors | 4 |
| Cable Length | 300 mm |
| Material | Copper Alloy |
| Type | Discrete Wire Assembly, High Reliability Assembly |
| Series | 45142 |
| Max. Amps | 40 |
| Standards | UL 10669 |
| Color | Black |
| Application | Power, Wire-to-Wire |
| Circuits (Loaded) | 4 |
| Single Ended | No |
| Number of Rows | 1 |
| Termination Interface Style | Crimp or Compression |
| Lock to Mating Part | Yes |
| Overmolded | No |
| Wire Insulation Diameter | 4.03mm-5.84mm |
| Pitch - Mating Interface | 7.4 mm |
| Material - Plating Mating | Gold |
| Gender | Male-Male |
| Current - Maximum per Contact | 40 A |
| Plating min - Mating | 0.1 um |
| Product Name | MultiCat |
| Assembly Configuration | Dual Ended Connectors |
| Wire Size (AWG) | 8 |
| Material - Plating Termination | Gold |
| Connector to Connector | MultiCat-to-MultiCat |
| Package Quantity | 1 |
