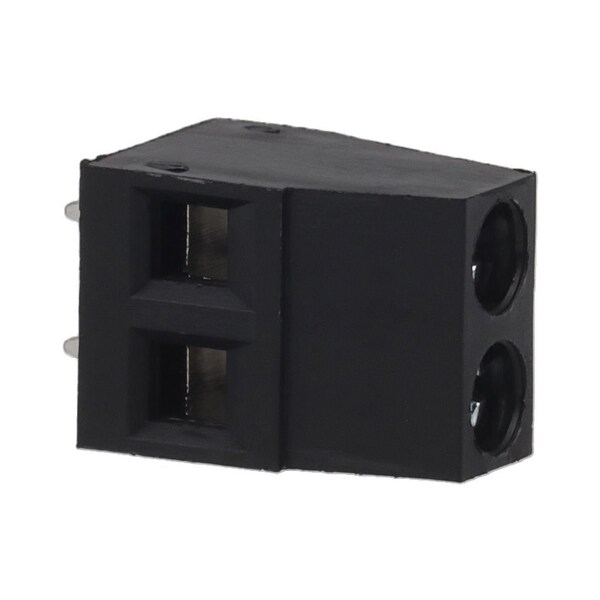

5.08 Mm Pitch Eurostyle Vertical Fixed Mount Pcb Terminal Block, 2 Circuits
| Type | Euro Block |
|---|---|
| Panel Mount | No |
| PCB Thickness - Recommended | 2 mm |
| Entry Angle | Horizontal |
| Pitch - Termination Interface | 5.08 mm |
| Max. Cycles at Max. Process Temperature | 135 |
| Wire Size mm² | 0.33-3.31 |
| Pitch - Mating Interface | 5.08 mm |
| Orientation | Vertical |
| Voltage - Maximum | 300 V |
| Stackable | No |
| Circuits (Loaded) | 2 |
| Process Temperature max. C | 260 |
| Number of Rows | 1 |
| PC Tail Length | 3 mm |
| Wire Size AWG | 12, 14, 16, 18, 20, 22 |
| Duration at Max. Process Temperature (seconds) | 5 |
| Lock to Mating Part | None |
| Current - Maximum per Contact | 15 A |
| Temperature Range - Operating | -40° to +105°C |
| UL | E48521 |
| Product Name | ESE,Eurostyle Fixed Mount |
| Series | 39544 |
| Component Type | One Piece |
| Package Quantity | 1 |
