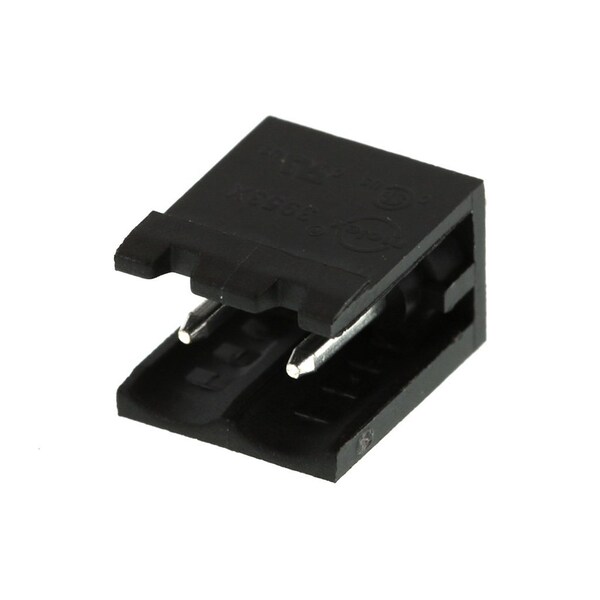

5.08Mm Euro Header Vert Oe Blk 2Ckt
| Series | 39531 |
|---|---|
| Application | Wire-to-Board |
| Type | Euro Block |
| Current - Maximum per Contact | 15 A |
| Shrouded | Ends |
| PCB Thickness - Recommended | 3.18 mm |
| Panel Mount | No |
| Polarized to Mating Part | Yes |
| PC Tail Length | 3.3 mm |
| Pitch - Termination Interface | 5.08 mm |
| Material - Plating Mating | Tin |
| Orientation | Vertical |
| UL | E48521 |
| Color - Resin | Black |
| Material - Resin | Polyamide |
| Lock to Mating Part | Yes |
| Number of Rows | 1 |
| Stackable | No |
| Termination Interface: Style | Through Hole |
| Circuits (Loaded) | 2 |
| Pitch - Mating Interface | 5.08 mm |
| Voltage - Maximum | 300 V |
| Material - Metal | Brass |
| Surface Mount Compatible (SMC) | No |
| Temperature Range - Operating | -40° to +105°C |
| Component Type | PCB Header |
| Product Name | ESE,Eurostyle Pluggable |
| Package Quantity | 1 |
