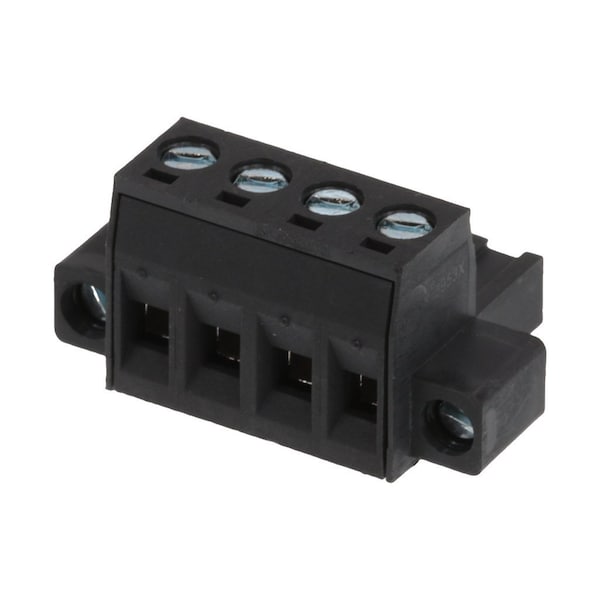

5.08Mm Euro Plug Ra Me Blk 4Ckt
| Orientation | Horizontal |
|---|---|
| Circuits (Loaded) | 4 |
| Number of Rows | 1 |
| Entry Angle | Vertical |
| Voltage - Maximum | 300 V |
| Polarized to Mating Part | Yes |
| Pitch - Mating Interface | 5.08 mm |
| Panel Mount | No |
| Current - Maximum per Contact | 18 A |
| Lock to Mating Part | Yes |
| Pitch - Termination Interface | 5.08 mm |
| UL | E48521 |
| Wire Size AWG | 12, 14, 16, 18, 20, 22, 24, 26 |
| Temperature Range - Operating | -40° to +105°C |
| Wire Size mm² | 0.13-3.31 |
| Stackable | No |
| Package Quantity | 1 |
