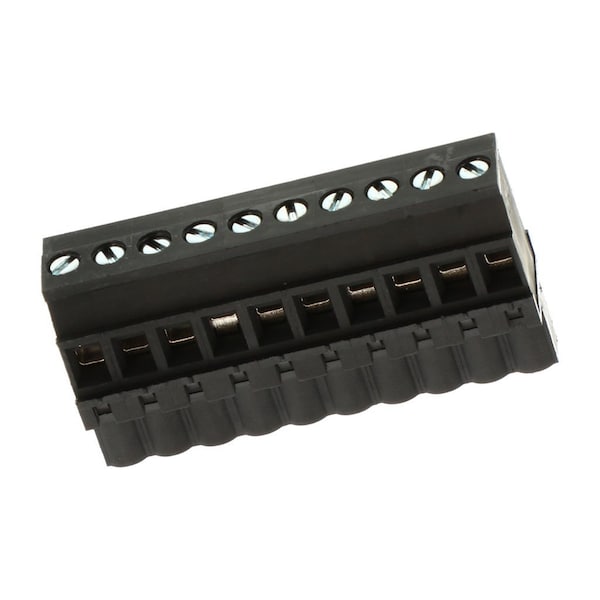

5.08Mm Euro Plug Vert Rwe Blk 10Ckt
| Series | 39533 |
|---|---|
| Type | Euro Block |
| Number of Rows | 1 |
| Wire Size mm² | 0.13-3.31 |
| Polarized to Mating Part | Yes |
| Circuits (Loaded) | 10 |
| UL | E48521 |
| Panel Mount | No |
| Entry Angle | Horizontal |
| Current - Maximum per Contact | 18 A |
| Pitch - Termination Interface | 5.08 mm |
| Orientation | Vertical |
| Lock to Mating Part | Yes |
| Temperature Range - Operating | -40° to +105°C |
| Wire Size AWG | 12, 14, 16, 18, 20, 22, 24, 26 |
| Voltage - Maximum | 300 V |
| Pitch - Mating Interface | 5.08 mm |
| Stackable | No |
| Product Name | ESE,Eurostyle Pluggable |
| Component Type | Plug |
| Package Quantity | 1 |
