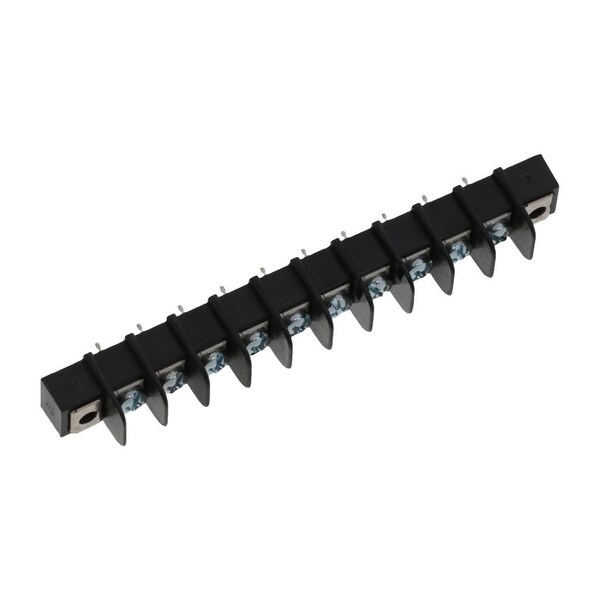

Barrier Terminal Blocks .375 Pcb 10P Pc Terminal Style
| Type | Barrier Strip |
|---|---|
| Material - Plating Termination | Tin |
| Wire Size mm² | 0.50-1.50 |
| Orientation | Horizontal |
| Material - Resin | Polyester |
| Current - Maximum per Contact | 15 A |
| Entry Angle | Horizontal |
| Circuits (Loaded) | 10 |
| Temperature Range - Operating | -40° to +130°C |
| PCB Thickness - Recommended | 3.18 mm |
| PC Tail Length | 4.8 mm |
| Number of Rows | 1 |
| Plating min - Mating | 3.81 um |
| Pitch - Termination Interface | 9.53 mm |
| Pitch - Mating Interface | 9.53 mm |
| Plating min - Termination | 3.81 um |
| Material - Metal | Brass |
| Polarized to Mating Part | No |
| Panel Mount | No |
| Wire Size AWG | 14, 16, 18, 20, 22 |
| Lock to Mating Part | None |
| Stackable | No |
| Material - Plating Mating | Tin |
| Surface Mount Compatible (SMC) | No |
| PCB Retention | Yes |
| Color - Resin | Black |
| Voltage - Maximum | 300 V |
| Shrouded | Dual-Barrier |
| Product Name | Fixed Mount Barrier |
| Component Type | One Piece |
| Series | 38720 |
| Package Quantity | 1 |
