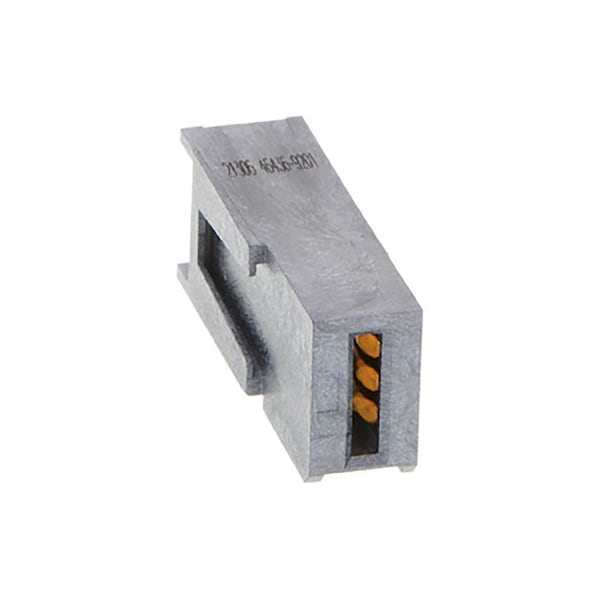

Board Connector, 1 Contact(S), Female, Right Angle, Solder Terminal, Locking, Black Insulator,
| Application | Power, Board to-Board |
|---|---|
| Series | 46436 |
| Termination Interface Style | Through Hole - Compliant Pin |
| Temperature Range - Operating | -40° to +105°C |
| Max-Cycle | 3 |
| Product Name | EXTreme Ten60Power |
| Guide to Mating Part | No |
| Material - Plating Termination | Matte Tin |
| Plating min - Mating | 0.762 um |
| CSA | LR19980 |
| Lock to Mating Part | No |
| Current - Maximum per Contact | 60 A |
| PCB Thickness - Recommended | 1.58 mm |
| UL | E29179 |
| Material - Resin | Liquid Crystal Polymer |
| (p)ower-(s)ignal Configuration | 1p - 0s |
| Voltage - Maximum | 600V AC / 250V DC |
| Polarized to Mating Part | Yes |
| Color - Resin | Black |
| Mated Height | 10 mm |
| Flammability | 94 V to 0 |
| PCB Retention | Yes |
| Material - Metal | Copper Alloy |
| Material - Plating Mating | Gold |
| Stackable | No |
| Polarized to PCB | Yes |
| Number of Rows | 1 |
| PC Tail Length | 3.28 mm |
| Component Type | PCB Receptacle |
| PCB Locator | No |
| Glow-Wire Capable | No |
| Circuits (Loaded) | 1 |
| Max-Temp | 260 |
| Pitch - Mating Interface | 5.5 mm |
| Orientation | Right Angle |
| Keying to Mating Part | None |
| Grounding to PCB | No |
| Durability (mating cycles max) | 200 |
| Max-Duration | 40 |
| Package Quantity | 1 |
