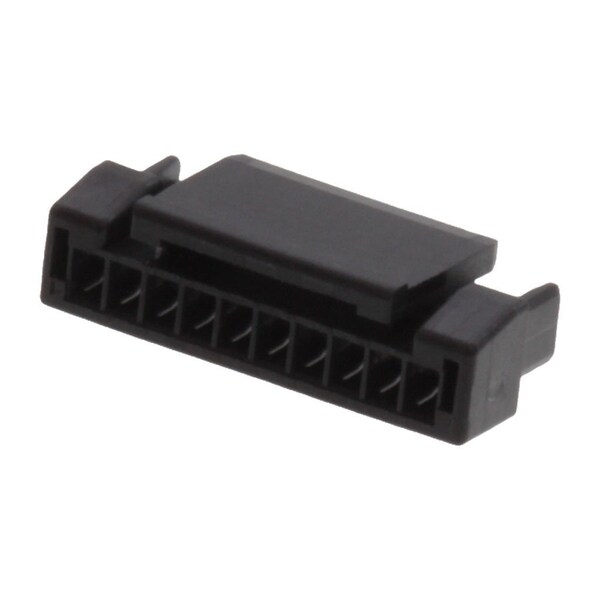

Conector de tarjeta, 10 contactos, 1 fila, hembra, paso de 0.05 pulgadas, terminal de engarce, bloqueo, negro.
| Color | Black |
|---|---|
| Application | Wire-to-Wire, Signal, Wire, to-Board |
| Series | 505565 |
| Standards | UL E29179 |
| Hole Center to Center | 1.25 mm |
| Max. Temp. | 105 deg C |
| Material | Polyester |
| Connector Type | Receptacle |
| Number of Contacts | 10 |
| Number of Rows | 1 |
| Circuits (maximum) | 10 |
| Material - Resin | PBT |
| UL | E29179 |
| Temperature Range - Operating | -40° to +105°C |
| Keying to Mating Part | None |
| Pitch - Mating Interface | 1.25 mm |
| Polarized to Mating Part | Yes |
| Product Name | Micro-Lock Plus |
| Glow-Wire Capable | No |
| Lock to Mating Part | Yes |
| Package Quantity | 1 |
