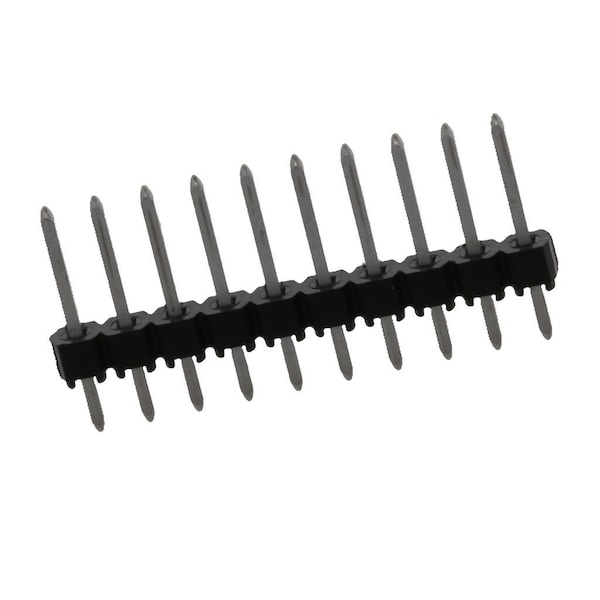

Conector de placa, 10 contactos, 1 fila, macho, recto, paso de 0.1 pulgadas, terminal de soldadura, negro.
| Color | Black |
|---|---|
| Max. Voltage | 350V AC/DC |
| Application | Signal, Wire-to-Board |
| Series | 90120 |
| Standards | CSA Certified, UL E29179 |
| Terminal Type | Through Hole |
| Features | Breakaway |
| Max. Temp. | 260 deg C |
| Material | Polyester |
| Hole Center to Center | 2.54 mm |
| Number of Contacts | 10 |
| Contact Finish | Tin Plated |
| Current Rating | 3 A |
| Terminal Finish | Tin Plated |
| Flammability Rating | UL 94V-0 |
| Number of Rows | 1 |
| PCB Retention | None |
| Durability (mating cycles max) | 30 |
| Current - Maximum per Contact | 3 A |
| PCB Thickness - Recommended | 1.6 mm |
| Flammability | 94 V to 0 |
| UL | E29179 |
| PCB Locator | No |
| Glow-Wire Capable | No |
| Breakaway | Yes |
| Material - Metal | Brass |
| Orientation | Vertical |
| Guide to Mating Part | No |
| Shrouded | No |
| Stackable | No |
| Product Name | C-Grid III |
| PC Tail Length | 2.9 mm |
| Circuits (Loaded) | 10 |
| Lock to Mating Part | None |
| Polarized to PCB | No |
| Max-Temp | 260 |
| First Mate / Last Break | No |
| Max-Duration | 5 |
| CSA | LR19980 |
| Pitch - Mating Interface | 2.54 mm |
| Keying to Mating Part | None |
| Component Type | PCB Header |
| Material - Plating Mating | Tin |
| Material - Plating Termination | Tin |
| Material - Resin | Polyester |
| Temperature Range - Operating | -55° to +125°C |
| Polarized to Mating Part | No |
| Package Quantity | 1 |
