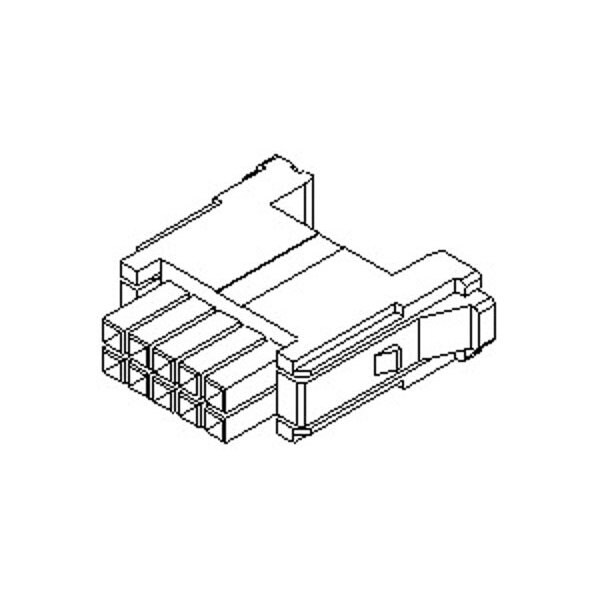

Conector de placa, 10 contactos, 2 filas, hembra, paso de 0.118 pulgadas, terminal de engarce, bloqueo, blanco
| Application | Wire-to-Wire, Panel-Mount |
|---|---|
| Series | 500813 |
| Color - Resin | Natural |
| Material - Resin | Polyester |
| Polarized to Mating Part | Yes |
| PCB Locator | No |
| Waterproof / Dustproof | No |
| Panel Mount | Screws |
| Orientation | Vertical |
| Temperature Range - Operating | -40° to +105°C |
| Pitch - Mating Interface | 3 mm |
| Flammability | 94 V to 0 |
| Voltage - Maximum | 250V AC (RMS)/DC |
| Component Type | Housing |
| UL | E29179 |
| CSA | LR19980 |
| Circuits (Loaded) | 10 |
| Product Name | Mini-HMC |
| Lock to Mating Part | Yes |
| Durability (mating cycles max) | 100 |
| Polarized to PCB | No |
| Package Quantity | 1 |
