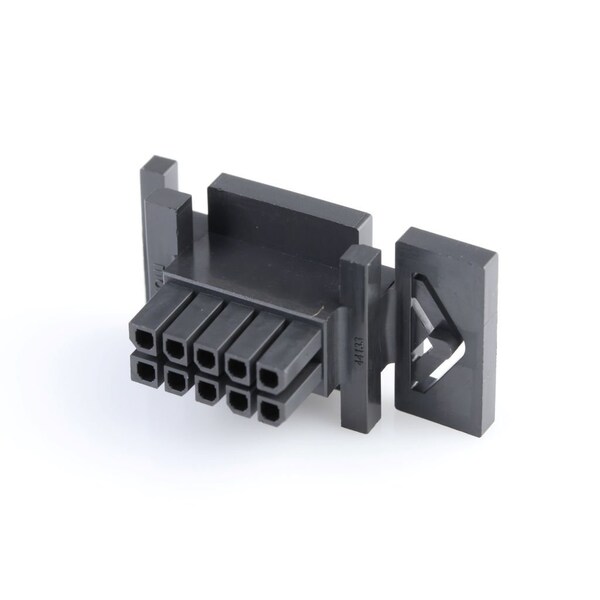

Conector de tarjeta, 10 contactos, 2 filas, hembra, recto, terminal de engarce, de bloqueo, negro
| Color | Black |
|---|---|
| Application | Power, Wire-to-Wire, Wire-to-Board |
| Series | 44133 |
| Standards | CSA Certified, UL E29179 |
| Max. Temp. | 105 deg C |
| Hole Center to Center | 3 mm |
| Connector Type | Receptacle |
| Material | Polyester |
| Flammability Rating | UL 94V-0 |
| Number of Rows | 2 |
| Number of Contacts | 10 |
| Pitch - Mating Interface | 3 mm |
| CSA | LR19980 |
| Material - Resin | Polyester |
| Flammability | 94 V to 0 |
| Polarized to Mating Part | Yes |
| Panel Mount | Yes |
| UL | E29179 |
| Circuits (maximum) | 10 |
| Product Name | Micro-Fit BMI |
| Temperature Range - Operating | -40° to +105°C |
| Glow-Wire Capable | No |
| Stackable | No |
| Lock to Mating Part | No |
| Package Quantity | 1 |
