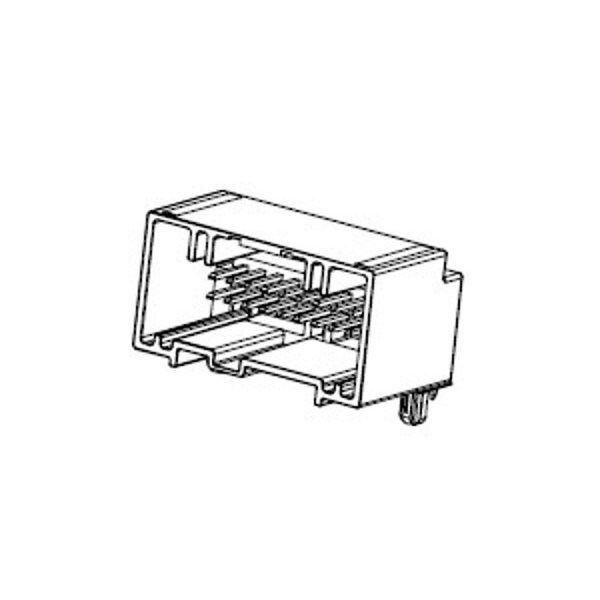

Conector de placa, 10 contactos, 2 filas, macho, ángulo recto, terminal de soldadura, bloqueo, gris.
| Color | Gray |
|---|---|
| Max. Voltage | 500 V DC |
| Application | Automotive, Power, Wire to-Board |
| Series | 30700 |
| Hole Center to Center | 2.54 mm |
| Terminal Type | Through Hole |
| Material | Modified Polystyrene |
| Max. Temp. | 260 deg C |
| Number of Contacts | 10 |
| Contact Finish | Tin Plated |
| Number of Rows | 2 |
| Current Rating | 7 A |
| Terminal Finish | Nickel Plated |
| Guide to Mating Part | No |
| PCB Retention | Yes |
| Durability (mating cycles max) | 10 |
| Lock to Mating Part | Yes |
| Material - Plating Termination | Nickel |
| Temperature Range - Operating | -40° to +100°C |
| Keying to Mating Part | None |
| Material - Metal | Copper |
| Current - Maximum per Contact | 7 A |
| Max-Duration | 40 |
| Max-Cycle | 3 |
| Material - Plating Mating | Tin |
| Component Type | PCB Header |
| PCB Locator | Yes |
| Breakaway | No |
| PC Tail Length | 3.69 mm |
| First Mate / Last Break | No |
| Stackable | No |
| Polarized to PCB | Yes |
| Circuits (Loaded) | 10 |
| Shrouded | Fully |
| Glow-Wire Capable | No |
| Material - Resin | Modified Polystyrene |
| PCB Thickness - Recommended | 1.57 mm |
| Product Name | H-DAC 64 |
| Max-Temp | 260 |
| Polarized to Mating Part | Yes |
| Pitch - Mating Interface | 2.54 mm |
| Orientation | Right Angle |
| Package Quantity | 1 |
