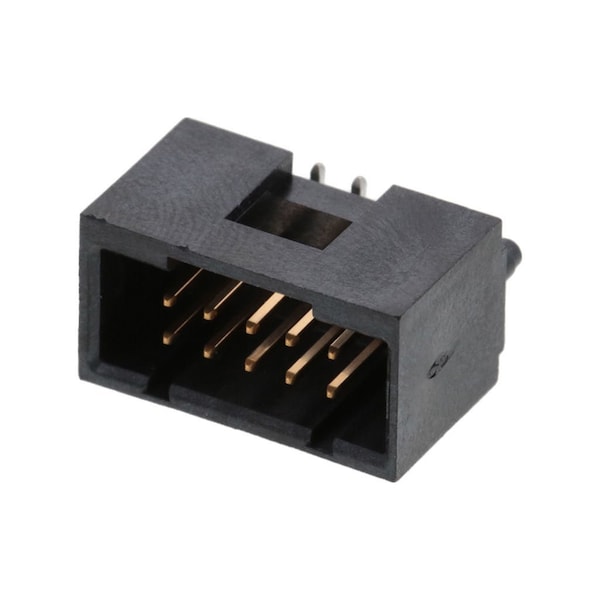

Conector de placa, 10 contactos, 2 filas, macho, recto, paso de 0.1 pulgadas, terminal de montaje en superficie.
| Color | Black |
|---|---|
| Max. Voltage | 250 V |
| Application | Signal, Wire-to-Board |
| Series | 71349 |
| Standards | UL E29179 |
| Hole Center to Center | 2.54 mm |
| Sub-Category | PCB Headers |
| Terminal Type | Surface Mount |
| Max. Temp. | 245 deg C |
| Material | High Temperature Thermoplastic |
| Flammability Rating | UL 94V-0 |
| Contact Finish | Gold Plated |
| Contact Plating Thickness | 0.381 µm |
| Current Rating | 3 A |
| Terminal Finish | Tin Plated |
| Number of Rows | 2 |
| Number of Contacts | 10 |
| Max-Cycle | 3 |
| Shrouded | Fully |
| Product Name | C-Grid |
| Max-Temp | 245 |
| UL | E29179 |
| Keying to Mating Part | None |
| First Mate / Last Break | No |
| Material - Plating Termination | Tin |
| Lock to Mating Part | Yes |
| Breakaway | No |
| Glow-Wire Capable | No |
| Material - Metal | Brass, Phosphor Bronze |
| Material - Resin | High Temperature Thermoplastic |
| Stackable | No |
| Max-Duration | 30 |
| Temperature Range - Operating | -40° to +105°C |
| Orientation | Vertical |
| Material - Plating Mating | Gold |
| Current - Maximum per Contact | 3 A |
| Durability (mating cycles max) | 50 |
| PCB Retention | Yes |
| Pitch - Mating Interface | 2.54 mm |
| PCB Locator | Yes |
| Guide to Mating Part | No |
| Component Type | PCB Header |
| Plating min - Mating | 0.381 um |
| Flammability | 94 V to 0 |
| Polarized to Mating Part | Yes |
| Circuits (Loaded) | 10 |
| Package Quantity | 1 |
