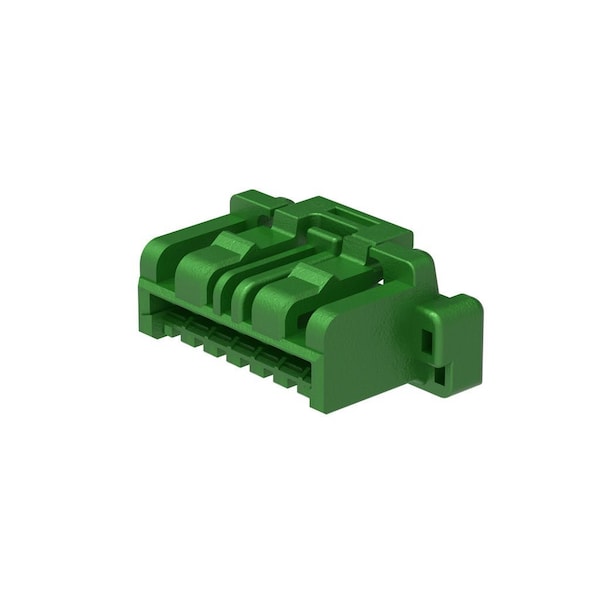

Board Connector, 11 Contact(S), 1 Row(S), 0.059 Inch Pitch, Locking, Green Insulator, Plug
| Color | Green |
|---|---|
| Application | Signal, Wire-to-Board |
| Series | 502578 |
| Hole Center to Center | 1.5 mm |
| Material | PBT |
| Max. Temp. | 105 deg C |
| Connector Type | Plug |
| Number of Rows | 1 |
| Number of Contacts | 11 |
| Glow-Wire Capable | No |
| Product Name | CLIK-Mate |
| Stackable | No |
| Pitch - Mating Interface | 1.5 mm |
| Polarized to Mating Part | Yes |
| UL | E29179 |
| Material - Resin | PBT |
| Keying to Mating Part | None |
| Circuits (maximum) | 11 |
| Lock to Mating Part | Yes |
| Temperature Range - Operating | -40° to +105°C |
| Package Quantity | 1 |
