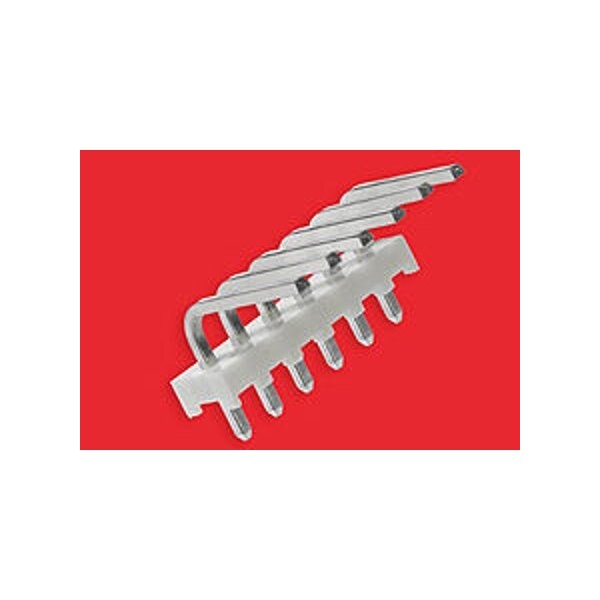

Conector de placa, 11 contactos, 1 fila, macho, ángulo recto, terminal de soldadura, con bloqueo, natural.
| Color | Natural |
|---|---|
| Max. Voltage | 250 V |
| Standards | CSA Certified, UL E29179 |
| Hole Center to Center | 3.96 mm |
| Max. Temp. | 235 deg C |
| Terminal Type | Through Hole |
| Material | Polyester |
| Current Rating | 7 A |
| Contact Finish | Tin Plated |
| Flammability Rating | UL 94V-0 |
| Contact Plating Thickness | 5.08 µm |
| Number of Contacts | 11 |
| Number of Rows | 1 |
| Terminal Finish | Tin Plated |
| Package Quantity | 1 |
