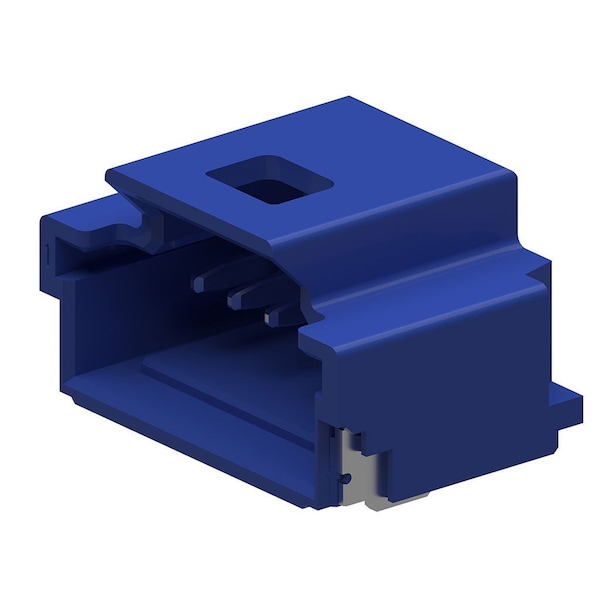

Conector de placa, 12 contactos, 1 fila, hembra, ángulo recto, terminal montado en superficie.
| Application | Signal, Wire-to-Board |
|---|---|
| Series | 501568 |
| PCB Retention | Yes |
| Component Type | PCB Header |
| Stackable | No |
| Number of Rows | 1 |
| Guide to Mating Part | No |
| UL | E29179 |
| Temperature Range - Operating | -40° to +105°C |
| Material - Plating Mating | Tin |
| Circuits (Loaded) | 12 |
| Glow-Wire Capable | No |
| Orientation | Right Angle |
| Keying to Mating Part | None |
| Termination Interface Style | Surface Mount |
| Current - Maximum per Contact | 1 A |
| Pitch - Mating Interface | 1 mm |
| Material - Plating Termination | Tin |
| Shrouded | Fully |
| Product Name | Pico-Clasp |
| Material - Resin | Nylon |
| Polarized to PCB | No |
| PCB Locator | No |
| Voltage - Maximum | 100V AC (RMS)/DC |
| First Mate / Last Break | No |
| Lock to Mating Part | Yes |
| Durability (mating cycles max) | 30 |
| Color - Resin | Blue |
| Material - Metal | Phosphor Bronze |
| Polarized to Mating Part | Yes |
| Breakaway | No |
| Package Quantity | 1 |
