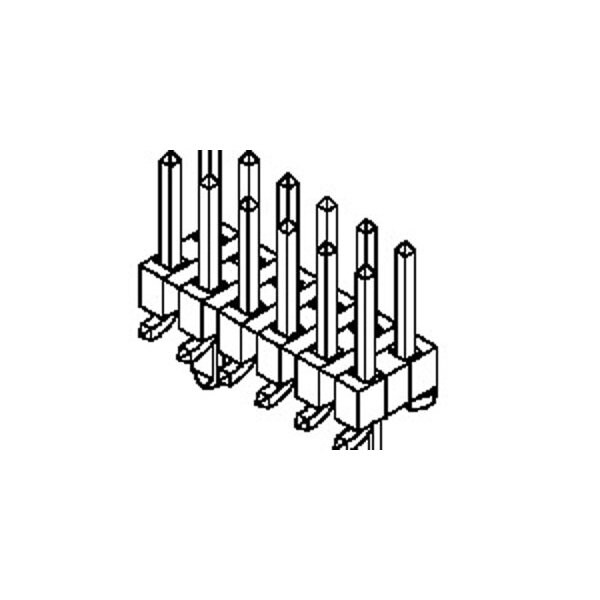

Board Connector, 12 Contact(S), 2 Row(S), Male, Straight, 0.079 Inch Pitch, Surface Mount Terminal,
| Color | Black |
|---|---|
| Max. Voltage | 125 V |
| Application | Board-to-Board, Signal |
| Series | 87759 |
| Standards | UL E29179 |
| Material | High Temperature Thermoplastic |
| Features | Breakaway |
| Max. Temp. | 260 deg C |
| Hole Center to Center | 2 mm |
| Terminal Type | Surface Mount |
| Contact Finish | Gold Plated |
| Number of Contacts | 12 |
| Flammability Rating | UL 94V-0 |
| Number of Rows | 2 |
| Current Rating | 2 A |
| Terminal Finish | Tin Plated |
| Contact Plating Thickness | 0.381 µm |
| Product Name | Milli-Grid |
| Stackable | Yes |
| PCB Retention | None |
| Shrouded | No |
| Material - Metal | Phosphor Bronze |
| Material - Resin | High Temperature Thermoplastic |
| Max-Duration | 10 |
| Pitch - Mating Interface | 2 mm |
| PCB Locator | Yes |
| Circuits (Loaded) | 12 |
| Durability (mating cycles max) | 100 |
| Glow-Wire Capable | No |
| Material - Plating Termination | Tin |
| Max-Temp | 260 |
| Guide to Mating Part | No |
| Lock to Mating Part | None |
| Breakaway | Yes |
| Material - Plating Mating | Gold |
| Current - Maximum per Contact | 2 A |
| First Mate / Last Break | No |
| Component Type | PCB Header |
| Keying to Mating Part | None |
| Plating min - Mating | 0.381 um |
| Polarized to Mating Part | No |
| Polarized to PCB | No |
| Mated Height | 3.8 mm |
| Flammability | 94 V to 0 |
| Orientation | Vertical |
| Temperature Range - Operating | -55° to +125°C |
| UL | E29179 |
| Max-Cycle | 3 |
| Package Quantity | 1 |
