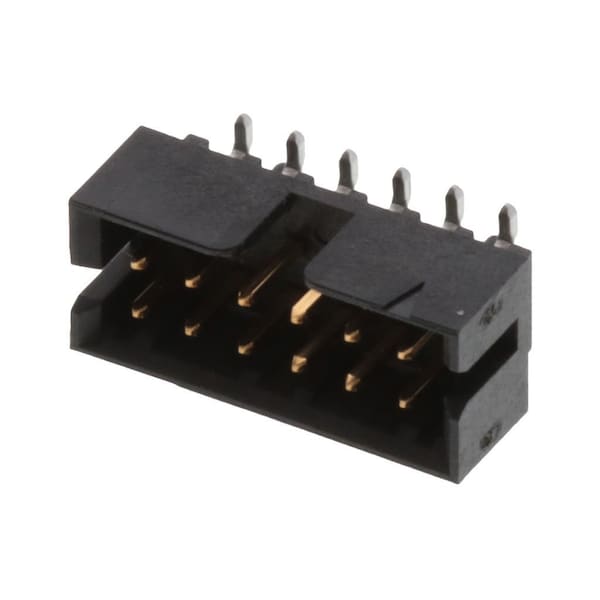

Conector de placa, 12 contactos, 2 filas, macho, recto, paso de 0.079 pulgadas, terminal montado en superficie.
| Color | Black |
|---|---|
| Max. Voltage | 125 V |
| Application | Signal, Wire-to-Board |
| Series | 87832 |
| Standards | CSA Certified, UL E29179 |
| Features | Surface Mount Compatible |
| Max. Temp. | 260 deg C |
| Material | Nylon |
| Hole Center to Center | 2 mm |
| Terminal Type | Surface Mount |
| Flammability Rating | UL 94V-0 |
| Number of Contacts | 12 |
| Current Rating | 2 A |
| Terminal Finish | Tin Plated |
| Contact Plating Thickness | 0.381 µm |
| Contact Finish | Gold Plated |
| Number of Rows | 2 |
| Lock to Mating Part | Yes |
| Temperature Range - Operating | -55° to +105°C |
| PCB Locator | No |
| Max-Duration | 10 |
| CSA | LR19980 |
| Product Name | Milli-Grid |
| Keying to Mating Part | Yes |
| Flammability | 94 V to 0 |
| Orientation | Vertical |
| PCB Retention | None |
| Pitch - Mating Interface | 2 mm |
| Circuits (Loaded) | 12 |
| Material - Metal | Phosphor Bronze |
| Material - Plating Termination | Tin |
| Material - Resin | Nylon |
| UL | E29179 |
| Glow-Wire Capable | No |
| First Mate / Last Break | No |
| Max-Temp | 260 |
| Breakaway | No |
| Component Type | PCB Header |
| Max-Cycle | 1 |
| Polarized to PCB | No |
| Shrouded | Fully |
| Current - Maximum per Contact | 2 A |
| Material - Plating Mating | Gold |
| Durability (mating cycles max) | 100 |
| Guide to Mating Part | No |
| Stackable | No |
| Plating min - Mating | 0.381 um |
| Package Quantity | 1 |
