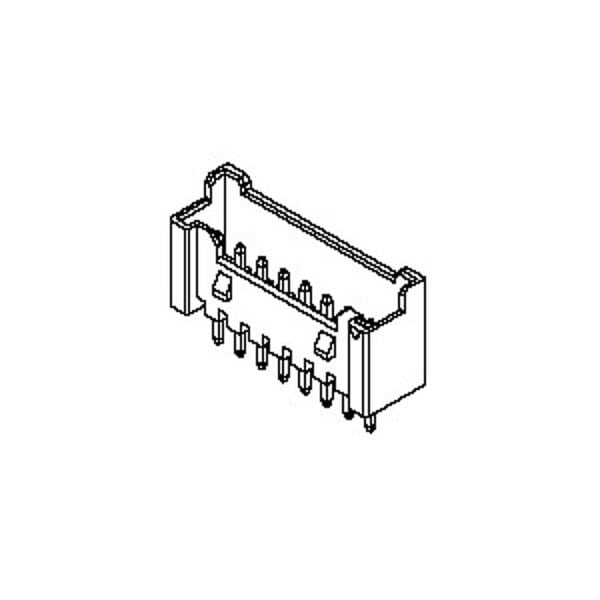

Conector de placa, 14 contactos, 1 fila, masculino, recto, paso de 0.079 pulgadas, terminal de soldadura.
| Color | Natural |
|---|---|
| Max. Voltage | 125 V |
| Application | Signal, Wire-to-Board |
| Series | 35362 |
| Standards | CSA Certified, UL E29179 |
| Material | Nylon |
| Hole Center to Center | 2 mm |
| Terminal Type | Through Hole |
| Max. Temp. | 105 deg C |
| Number of Contacts | 14 |
| Contact Finish | Tin Plated |
| Flammability Rating | UL 94V-0 |
| Number of Rows | 1 |
| Terminal Finish | Tin Plated |
| Current Rating | 2 A |
| PCB Thickness - Recommended | 1.6 mm |
| Material - Resin | Nylon |
| First Mate / Last Break | No |
| Keying to Mating Part | None |
| PCB Retention | Yes |
| Product Name | Sherlock |
| Circuits (Loaded) | 14 |
| Mated Height | 8.5 mm |
| Guide to Mating Part | No |
| Temperature Range - Operating | -40° to +105°C |
| PCB Locator | No |
| Polarized to Mating Part | Yes |
| Glow-Wire Capable | No |
| Shrouded | Partial |
| Flammability | 94 V to 0 |
| UL | E29179 |
| CSA | LR19980 |
| Stackable | No |
| Orientation | Vertical |
| Pitch - Mating Interface | 2 mm |
| Breakaway | No |
| Durability (mating cycles max) | 30 |
| Lock to Mating Part | Yes |
| Current - Maximum per Contact | 2 A |
| PC Tail Length | 3.3 mm |
| Material - Plating Mating | Tin |
| Polarized to PCB | No |
| Component Type | PCB Header |
| Material - Plating Termination | Tin |
| Package Quantity | 1 |
