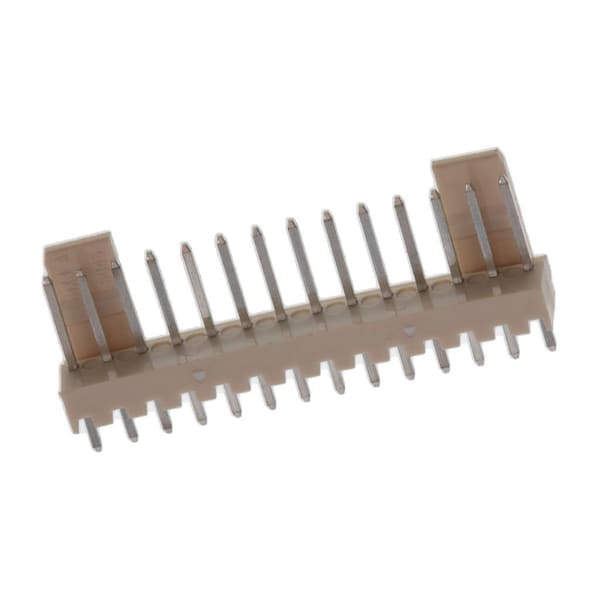

Board Connector, 14 Contact(S), 1 Row(S), Male, Straight, 0.098 Inch Pitch, Solder Terminal,
| Color | Natural |
|---|---|
| Max. Voltage | 250 V |
| Application | Signal, Wire-to-Board |
| Series | 5045 |
| Standards | UL E29179 |
| Max. Temp. | 105 deg C |
| Material | Polyamide |
| Hole Center to Center | 2.5 mm |
| Terminal Type | Through Hole |
| Terminal Finish | Tin Plated |
| Contact Finish | Tin Plated |
| Flammability Rating | UL 94V-0 |
| Current Rating | 3 A |
| Number of Rows | 1 |
| Contact Plating Thickness | 5.08 µm |
| Number of Contacts | 14 |
| Polarized to PCB | No |
| Glow-Wire Capable | No |
| Material - Metal | Brass |
| First Mate / Last Break | No |
| Lock to Mating Part | Yes |
| Breakaway | No |
| PCB Locator | No |
| Product Name | KK,Mini-Latch |
| Stackable | No |
| Material - Plating Mating | Tin |
| Orientation | Vertical |
| Durability (mating cycles max) | 30 |
| Pitch - Mating Interface | 2.5 mm |
| Guide to Mating Part | No |
| Component Type | PCB Header |
| Circuits (Loaded) | 14 |
| Flammability | 94 V to 0 |
| Keying to Mating Part | None |
| Material - Resin | Polyamide |
| Plating min - Mating | 5.08 um |
| Shrouded | Partial |
| UL | E29179 |
| Current - Maximum per Contact | 3 A |
| Temperature Range - Operating | -40° to +105°C |
| PC Tail Length | 3.4 mm |
| PCB Thickness - Recommended | 1.6 mm |
| Material - Plating Termination | Tin |
| PCB Retention | None |
| Package Quantity | 1 |
