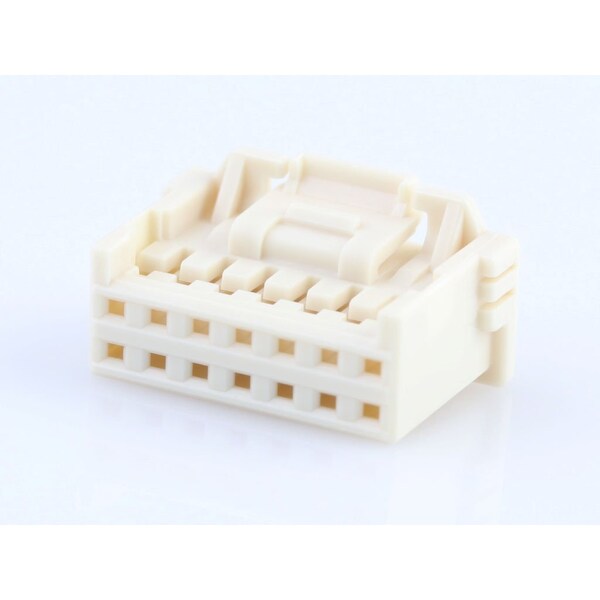

Board Connector, 14 Contact(S), 2 Row(S), 0.079 Inch Pitch, Locking, Natural Insulator, Receptacle
| Color | Natural |
|---|---|
| Application | Signal, Wire-to-Board |
| Series | 501646 |
| Standards | CSA Certified, UL E29179 |
| Hole Center to Center | 2 mm |
| Material | Nylon |
| Max. Temp. | 105 deg C |
| Connector Type | Receptacle |
| Number of Rows | 2 |
| Flammability Rating | UL 94V-0 |
| Number of Contacts | 14 |
| Lock to Mating Part | Yes |
| CSA | LR19980 |
| Circuits (maximum) | 14 |
| Product Name | iGrid |
| Pitch - Mating Interface | 2 mm |
| Flammability | 94 V to 0 |
| Temperature Range - Operating | -40° to +105°C |
| Material - Resin | Nylon |
| Polarized to Mating Part | Yes |
| Glow-Wire Capable | No |
| Stackable | No |
| UL | E29179 |
| Keying to Mating Part | None |
| Package Quantity | 1 |
