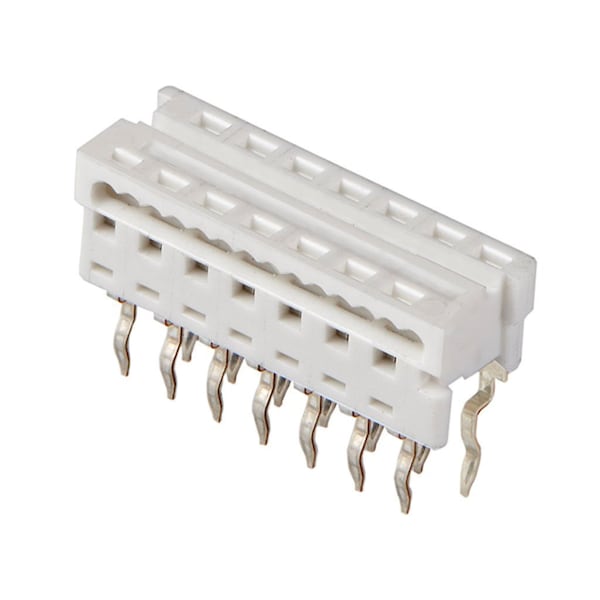

Board Connector, 14 Contact(S), 2 Row(S), Female, Straight, 0.1 Inch Pitch, Solder Terminal, White
| Color | Natural |
|---|---|
| Max. Single Wire Size | 26 AWG |
| Min. Single Wire Size | 28 AWG |
| Max. Voltage | 250 V |
| Standards | UL E29179 |
| Material | Polyester |
| Max. Temp. | 105 deg C |
| Hole Center to Center | 1.27 mm |
| Terminal Type | Through Hole - Kinked Pin |
| Max. Insulation Dia. | 1 mm |
| Contact Finish | Tin Plated |
| Flammability Rating | UL 94V-0 |
| Number of Contacts | 14 |
| Contact Plating Thickness | 2.032 µm |
| Terminal Finish | Tin Plated |
| Current Rating | 1.2 A |
| Number of Rows | 2 |
| Package Quantity | 1 |
