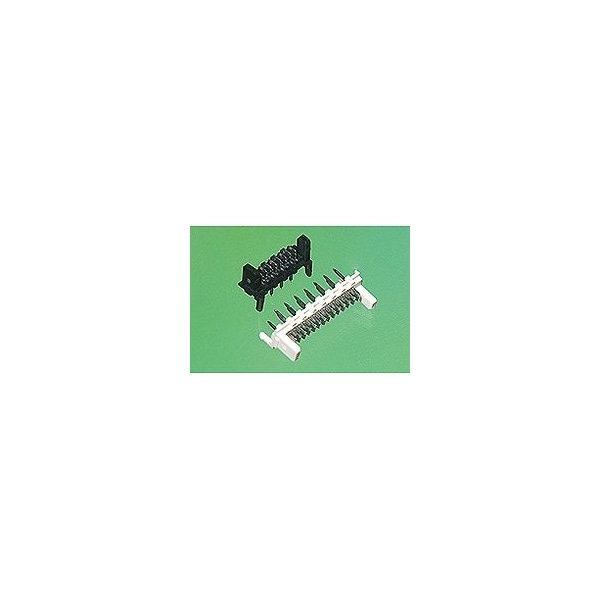

Board Connector, 14 Contact(S), 2 Row(S), Male, Straight, 0.05 Inch Pitch, Solder Terminal,
| Color | Black |
|---|---|
| Max. Voltage | 250 V |
| Application | Signal, Wire-to-Board |
| Series | 90325 |
| Standards | CSA Certified, UL E29179 |
| Material | Polyester |
| Terminal Type | Through Hole |
| Max. Temp. | 230 deg C |
| Hole Center to Center | 1.27 mm |
| Flammability Rating | UL 94V-0 |
| Current Rating | 1.2 A |
| Number of Contacts | 14 |
| Number of Rows | 1 |
| Contact Finish | Tin Plated |
| Product Name | Picoflex |
| PCB Retention | Yes |
| Stackable | No |
| Breakaway | No |
| Glow-Wire Capable | No |
| Guide to Mating Part | No |
| Shrouded | No |
| Durability (mating cycles max) | 30 |
| Max-Temp | 230 |
| Pitch - Mating Interface | 1.27 mm |
| PCB Thickness - Recommended | 1.6 mm |
| Material - Plating Mating | Tin |
| Max-Duration | 5 |
| Component Type | PCB Header |
| Keying to Mating Part | None |
| First Mate / Last Break | No |
| CSA | LR19980 |
| Flammability | 94 V to 0 |
| Polarized to PCB | Yes |
| Material - Resin | Polyester |
| Polarized to Mating Part | Yes |
| UL | E29179 |
| Material - Metal | Brass |
| Lock to Mating Part | Yes |
| Current - Maximum per Contact | 1.2 A |
| Circuits (Loaded) | 14 |
| Orientation | Vertical |
| Temperature Range - Operating | -40° to +105°C |
| Package Quantity | 1 |
