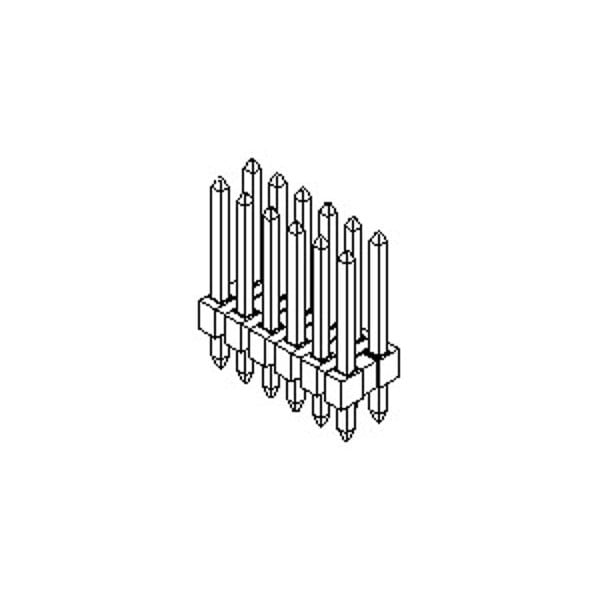

Conector de tarjeta, 14 contactos, 2 filas, Macho, Recto, Terminal de soldadura.
| Color | Black |
|---|---|
| Max. Voltage | 250 V DC |
| Standards | CSA Certified, UL E29179 |
| Terminal Type | Through Hole |
| Hole Center to Center | 2.54 mm |
| Features | Breakaway; Surface Mount Compatible |
| Current Rating | 3 A |
| Max. Temp. | 260 deg C |
| Material | High Temperature Thermoplastic |
| Contact Plating Thickness | 0.813 µm |
| Flammability Rating | UL 94V-0 |
| Number of Contacts | 14 |
| Number of Rows | 2 |
| Terminal Finish | Tin Plated |
| Contact Finish | Gold Plated |
| Package Quantity | 1 |
