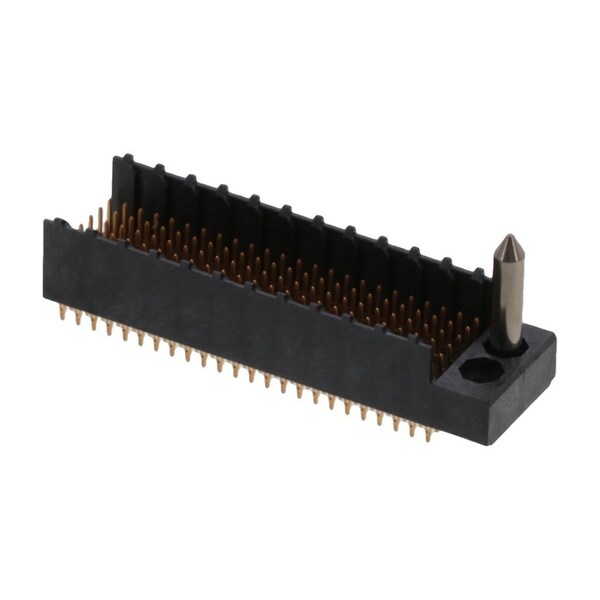

Conector de placa, 144 contactos, 6 filas, macho, recto, paso de 0.079 pulgadas, terminal de ajuste por presión.
| Color | Black, Natural |
|---|---|
| Max. Voltage | 250 V AC |
| Standards | CSA Certified, UL E29179 |
| Features | Surface Mount Compatible |
| Max. Temp. | 105 deg C |
| Hole Center to Center | 2 mm |
| Terminal Type | Through Hole - Compliant Pin |
| Material | High Temperature Thermoplastic |
| Contact Finish | Gold Plated |
| Contact Plating Thickness | 0.762 µm |
| Current Rating | 1 A |
| Number of Contacts | 144 |
| Number of Rows | 6 |
| Terminal Finish | Gold Plated |
| Flammability Rating | UL 94V-0 |
| Package Quantity | 1 |
