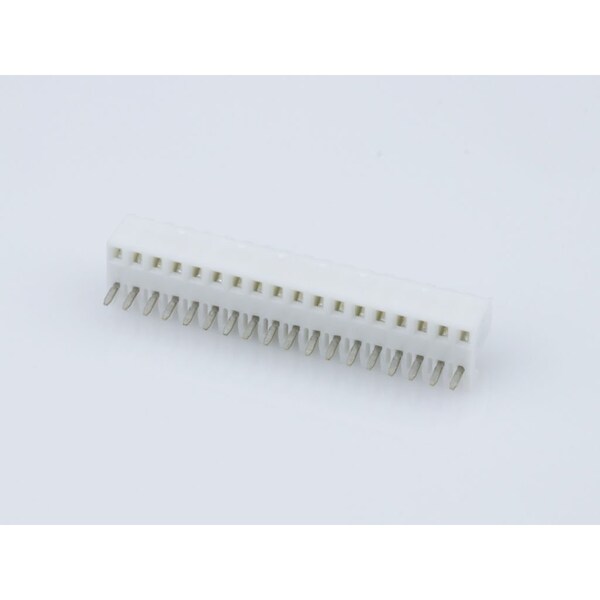

Board Connector, 18 Contact(S), 1 Row(S), Female, Straight, 0.1 Inch Pitch, Solder Terminal, Plug
| Color | Natural |
|---|---|
| Max. Voltage | 500 V |
| Application | Board-to-Board, Signal |
| Series | 4455 |
| Standards | CSA Certified, UL E29179 |
| Max. Temp. | 235 deg C |
| Material | Nylon |
| Hole Center to Center | 2.54 mm |
| Terminal Type | Through Hole |
| Current Rating | 2.5 A |
| Contact Finish | Gold Plated |
| Terminal Finish | Tin Plated |
| Contact Plating Thickness | 0.381 µm |
| Number of Contacts | 18 |
| Number of Rows | 1 |
| Flammability Rating | UL 94V-0 |
| PCB Locator | No |
| Guide to Mating Part | No |
| PCB Retention | None |
| Material - Plating Mating | Gold |
| Keying to Mating Part | None |
| Orientation | Bottom Entry |
| Pitch - Mating Interface | 2.54 mm |
| Grounding to PCB | No |
| Flammability | 94 V to 0 |
| Product Name | KK 254 |
| Max-Duration | 5 |
| Circuits (Loaded) | 18 |
| UL | E29179 |
| CSA | LR19980 |
| Component Type | PCB Receptacle |
| Plating min - Mating | 0.381 um |
| Temperature Range - Operating | See Product Specification |
| Max-Temp | 235 |
| Material - Resin | Nylon |
| PC Tail Length | 3.35 mm |
| Color - Resin | Natural |
| Glow-Wire Capable | No |
| Current - Maximum per Contact | 2.5 A |
| Lock to Mating Part | No |
| PCB Thickness - Recommended | 1.6 mm |
| Material - Plating Termination | Tin |
| Polarized to PCB | No |
| Package Quantity | 1 |
