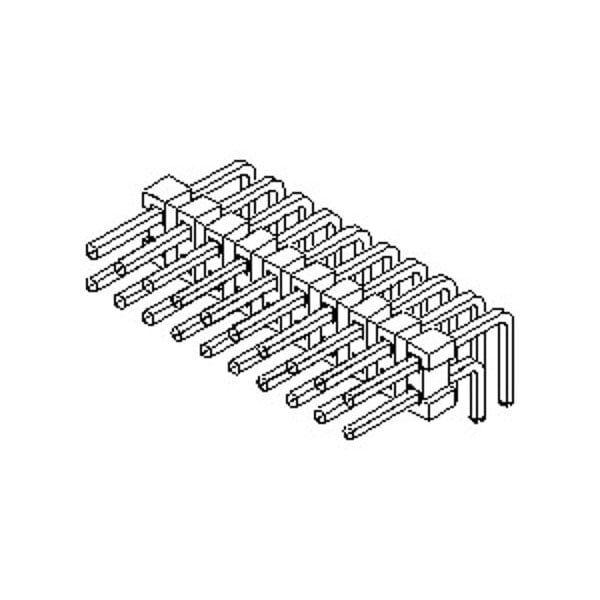

Conector de placa, 18 contactos, 2 hileras, macho, ángulo recto, terminal de soldadura.
| Max. Voltage | 250 V |
|---|---|
| Application | Board-to-Board, Signal, Wire-to-Board |
| Series | 71764 |
| Standards | CSA Certified, UL E29179 |
| Material | Phosphor Bronze, Brass |
| Terminal Type | Through Hole |
| Max. Temp. | 105 deg C |
| Hole Center to Center | 2.54 mm |
| Features | Breakaway |
| Current Rating | 3 A |
| Contact Plating Thickness | 3.81 µm |
| Flammability Rating | UL 94V-0 |
| Terminal Finish | Tin Plated |
| Number of Rows | 2 |
| Contact Finish | Tin Plated |
| Number of Contacts | 18 |
| Product Name | C-Grid |
| Breakaway | Yes |
| CSA | LR19980 |
| Current - Maximum per Contact | 3 A |
| Orientation | Right Angle |
| UL | E29179 |
| Shrouded | No |
| PCB Retention | None |
| PCB Locator | No |
| Stackable | Yes |
| Lock to Mating Part | None |
| Durability (mating cycles max) | 25 |
| Temperature Range - Operating | -40° to +105°C |
| Polarized to Mating Part | No |
| Plating min - Mating | 3.81 um |
| PC Tail Length | 2.79 mm |
| Material - Plating Termination | Tin |
| Glow-Wire Capable | No |
| Pitch - Mating Interface | 2.54 mm |
| Material - Plating Mating | Tin |
| Flammability | 94 V to 0 |
| Circuits (Loaded) | 18 |
| Component Type | PCB Header |
| Package Quantity | 1 |
