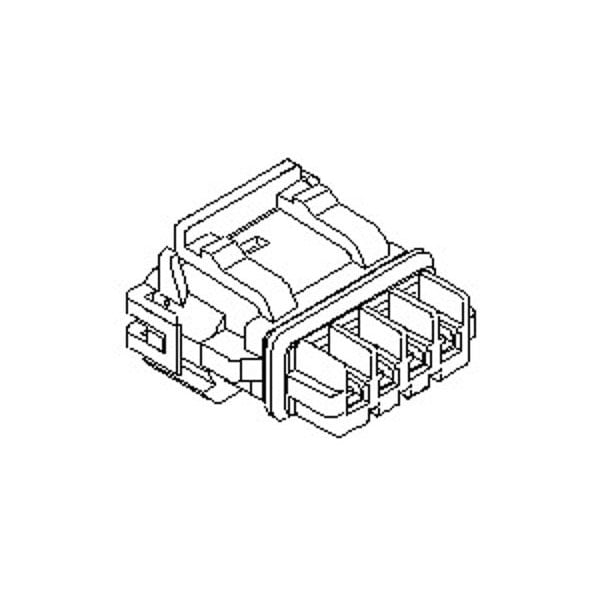

Conector de pines, 2 contactos, 1 fila, hembra, paso de 0.098 pulgadas, terminal de engarce, bloqueo, blanco.
| Item | Miniature Waterproof Connector |
|---|---|
| Color | White |
| Application | Signal, Wire-to-Wire |
| Series | 52117 |
| Standards | UL E29179 |
| Material | Polyester |
| Sub-Category | Crimp Housings |
| Connector Type | Receptacle |
| Max. Temp. | 105 deg C |
| Hole Center to Center | 5 mm |
| Number of Contacts | 2 |
| Number of Rows | 1 |
| Current Rating | 3 A |
| UL | E29179 |
| Glow-Wire Capable | No |
| Lock to Mating Part | Yes |
| Current - Maximum per Contact | 3 A |
| Circuits (maximum) | 2 |
| Stackable | No |
| Pitch - Mating Interface | 5 mm |
| Material - Resin | Polyester |
| Product Name | Mizu-P25 Waterproof, Splash Proof |
| Temperature Range - Operating | -40° to +105°C |
| Package Quantity | 1 |
