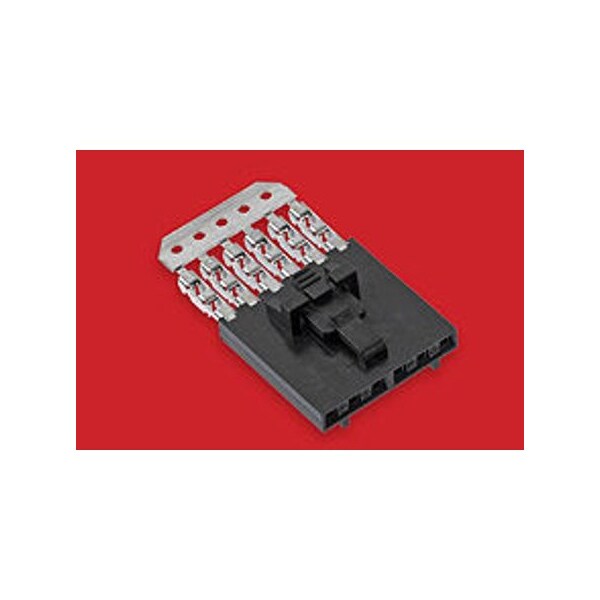

Board Connector, 2 Contact(S), 1 Row(S), Female, 0.1 Inch Pitch, Idc Terminal, Locking, Black
| Color | Black |
|---|---|
| Max. Voltage | 250 V |
| Series | 70400 |
| Standards | CSA Certified, UL E29179 |
| Hole Center to Center | 2.54 mm |
| Max. Insulation Dia. | 1.35 mm |
| Wire Range | 26 AWG |
| Terminal Type | IDT, Pierce |
| Material | Alloy |
| Wire Type | Discrete |
| Max. Temp. | 105 deg C |
| Contact Finish | Tin Plated |
| Current Rating | 3 A |
| Number of Contacts | 2 |
| Contact Plating Thickness | 3.81 µm |
| Terminal Finish | Tin Plated |
| Number of Rows | 1 |
| Flammability Rating | UL 94V-0 |
| Glow-Wire Capable | No |
| Material - Plating Termination | Tin |
| Material - Resin | Polyester Alloy |
| PCB Retention | None |
| Circuits (Loaded) | 2 |
| Wire Insulation Diameter | 1.35 mm max. |
| Component Type | Housing |
| Lock to Mating Part | Yes |
| Polarized to Mating Part | Yes |
| Flammability | 94 V to 0 |
| Product Name | SL |
| Durability (mating cycles max) | 25 |
| CSA | LR19980 |
| Material - Metal | Phosphor Bronze |
| UL | E29179 |
| Entry Angle | Vertical |
| Stackable | Yes |
| Gender | Female |
| Temperature Range - Operating | -40° to +105°C |
| Pitch - Mating Interface | 2.54 mm |
| Wire Size (AWG) | 26 |
| Plating min - Mating | 3.81 um |
| Current - Maximum per Contact | 3 A |
| Wire/Cable Type | Cable |
| Material - Plating Mating | Tin |
| Package Quantity | 1 |
