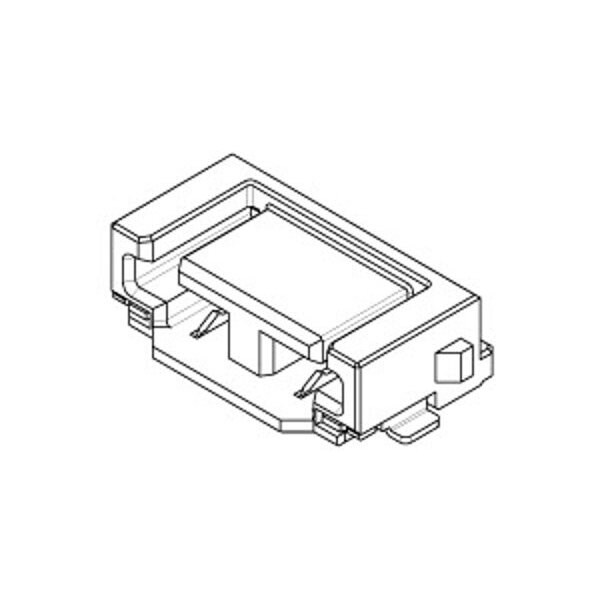

Conector de placa, 2 contactos, 1 fila, hembra, ángulo recto, paso de 0.145 pulgadas, montaje en superficie.
| Color | White |
|---|---|
| Max. Voltage | 500 V |
| Application | Board-to-Board, Power, Wire-to-Board |
| Series | 503471 |
| Standards | UL E29179 |
| Terminal Type | Surface Mount |
| Hole Center to Center | 3.7 mm |
| Max. Temp. | 85 deg C |
| Material | Phosphor Bronze |
| Number of Contacts | 2 |
| Contact Finish | Tin Plated |
| Flammability Rating | UL 94V-0 |
| Terminal Finish | Tin Plated |
| Current Rating | 2 A |
| Number of Rows | 1 |
| Orientation | Right Angle |
| Material - Plating Termination | Tin |
| Current - Maximum per Contact | 2 A |
| Polarized to Mating Part | Yes |
| Temperature Range - Operating | -40° to +85°C |
| Product Name | Flexi-Mate |
| Pitch - Mating Interface | 3.7 mm |
| Flammability | 94 V to 0 |
| UL | E29179 |
| Material - Plating Mating | Tin |
| Glow-Wire Capable | No |
| Circuits (Loaded) | 2 |
| Polarized to PCB | Yes |
| Lock to Mating Part | Yes |
| Durability (mating cycles max) | 15 |
| Mated Height | 3 mm |
| Component Type | PCB Receptacle |
| PCB Locator | No |
| PCB Retention | Yes |
| Package Quantity | 1 |
