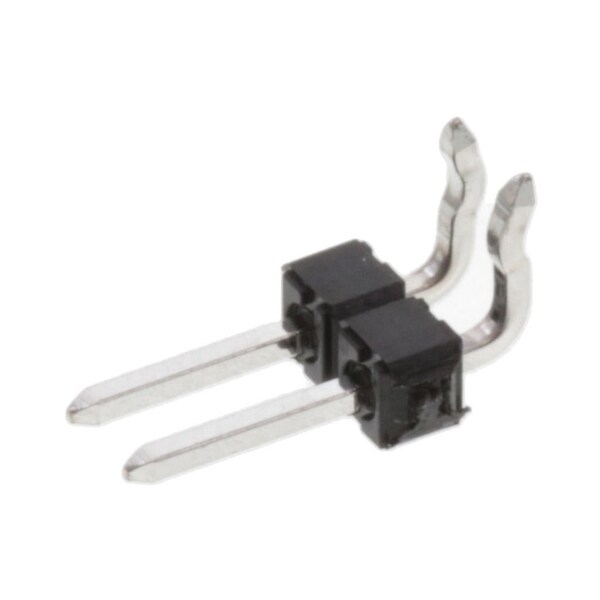

Board Connector, 2 Contact(S), 1 Row(S), Male, Right Angle, 0.1 Inch Pitch, Solder Terminal,
| Color | Black |
|---|---|
| Max. Voltage | 500 V |
| Application | Board-to-Board, Signal, Wire-to-Board |
| Series | 42377 |
| Standards | CSA Certified, UL E29179 |
| Hole Center to Center | 2.54 mm |
| Terminal Type | Through Hole |
| Max. Temp. | 235 deg C |
| Material | High Temperature Thermoplastic |
| Features | Breakaway; Surface Mount Compatible |
| Contact Finish | Tin Plated |
| Number of Rows | 1 |
| Flammability Rating | UL 94V-0 |
| Number of Contacts | 2 |
| Contact Plating Thickness | 2.54 µm |
| Current Rating | 4 A |
| Terminal Finish | Tin Plated |
| Breakaway | Yes |
| Polarized to PCB | No |
| Max-Duration | 5 |
| CSA | LR19980 |
| Material - Resin | High Temperature Thermoplastic |
| Temperature Range - Operating | See Product Specification |
| Material - Metal | Brass |
| PCB Locator | No |
| Durability (mating cycles max) | 25 |
| Lock to Mating Part | None |
| PCB Thickness - Recommended | 1.6 mm |
| Flammability | 94 V to 0 |
| Component Type | PCB Header |
| Current - Maximum per Contact | 4 A |
| Circuits (Loaded) | 2 |
| Glow-Wire Capable | No |
| Product Name | KK 254 |
| Orientation | Right Angle |
| Material - Plating Mating | Tin |
| Shrouded | Partial |
| Plating min - Mating | 2.54 um |
| UL | E29179 |
| Max-Temp | 235 |
| Polarized to Mating Part | Yes |
| Material - Plating Termination | Tin |
| Pitch - Mating Interface | 2.54 mm |
| PCB Retention | Yes |
| PC Tail Length | 3.43 mm |
| Stackable | No |
| Package Quantity | 1 |
