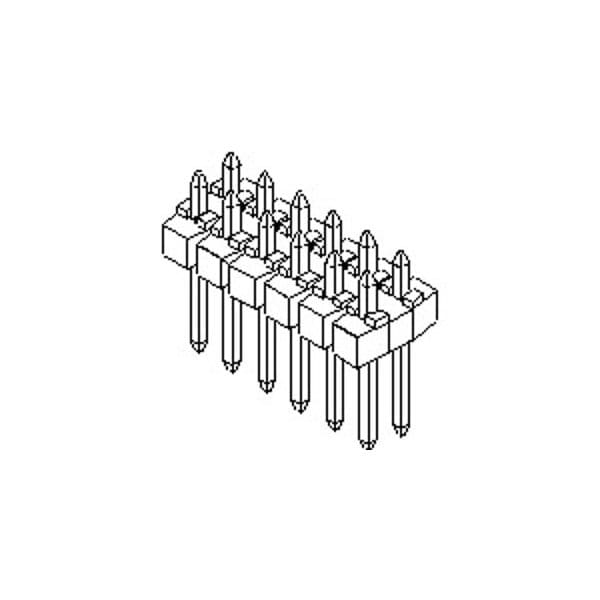

Conector de placa, 2 contactos, 2 filas, macho, recto, terminal de soldadura.
| Application | Signal, Wire-to-Board |
|---|---|
| Series | 90131 |
| Temperature Range - Operating | -55° to +125°C |
| Component Type | PCB Header |
| Material - Plating Mating | Gold |
| Shrouded | No |
| Pitch - Mating Interface | 2.54 mm |
| PC Tail Length | 2.9 mm |
| Material - Resin | Polyester |
| Color - Resin | Black |
| PCB Locator | No |
| Voltage - Maximum | 350V AC/DC |
| Circuits (Loaded) | 2 |
| Number of Rows | 2 |
| Glow-Wire Capable | No |
| CSA | LR19980 |
| Orientation | Vertical |
| Max-Cycle | 1 |
| Product Name | C-Grid III |
| Polarized to PCB | No |
| Guide to Mating Part | No |
| PCB Thickness - Recommended | 1.6 mm |
| Stackable | Yes |
| Polarized to Mating Part | No |
| Material - Plating Termination | Tin |
| Max-Duration | 3 |
| First Mate / Last Break | No |
| Keying to Mating Part | None |
| Material - Metal | Brass |
| Termination Interface Style | Through Hole |
| Max-Temp | 235 |
| Current - Maximum per Contact | 3 A |
| Breakaway | Yes |
| Package Quantity | 1 |
