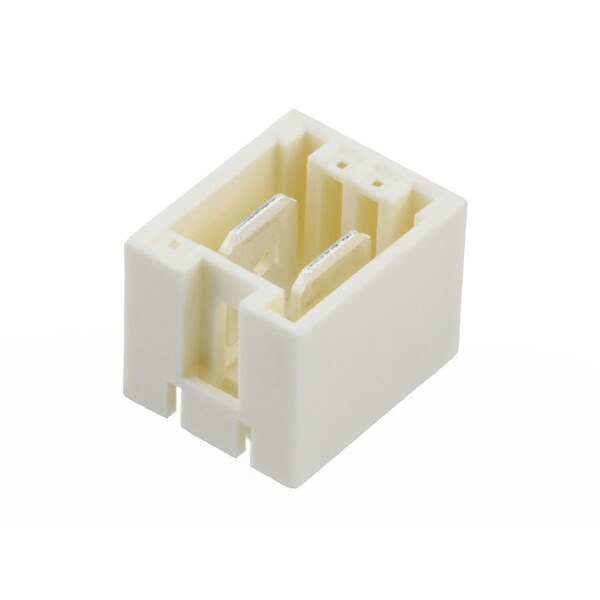

Conector de placa, 2 contactos, macho, recto, terminal de soldadura, ranura de guía, aislante natural.
| Color | Natural |
|---|---|
| Max. Voltage | 250 V AC |
| Application | Power, Wire to-Board |
| Series | 91999 |
| Standards | CSA Certified, UL E29179 |
| Features | Glow-Wire Capable |
| Material | Nylon |
| Hole Center to Center | 5 mm |
| Max. Temp. | 120 deg C |
| Terminal Type | Through Hole |
| Contact Finish | Silver Plated |
| Terminal Finish | Nickel Plated |
| Flammability Rating | UL 94V-0 |
| Number of Contacts | 2 |
| Current Rating | 16 A |
| Number of Rows | 1 |
| Product Name | RAST 5 |
| Flammability | 94 V to 0 |
| Breakaway | No |
| First Mate / Last Break | No |
| Material - Plating Mating | Silver |
| Temperature Range - Operating | -20° to +120°C |
| PCB Thickness - Recommended | 1.4 mm |
| Shrouded | Fully |
| Circuits (Loaded) | 2 |
| Keying to Mating Part | Yes |
| PCB Locator | Yes |
| Current - Maximum per Contact | 16 A |
| Component Type | PCB Header |
| CSA | LR19980 |
| Lock to Mating Part | Yes |
| Material - Resin | Nylon |
| Material - Metal | Brass |
| PC Tail Length | 3.9 mm |
| Orientation | Vertical |
| PCB Retention | None |
| UL | E29179 |
| Pitch - Mating Interface | 5 mm |
| Guide to Mating Part | No |
| Durability (mating cycles max) | 10 |
| Glow-Wire Capable | Yes |
| Stackable | No |
| Material - Plating Termination | Nickel |
| Package Quantity | 1 |
